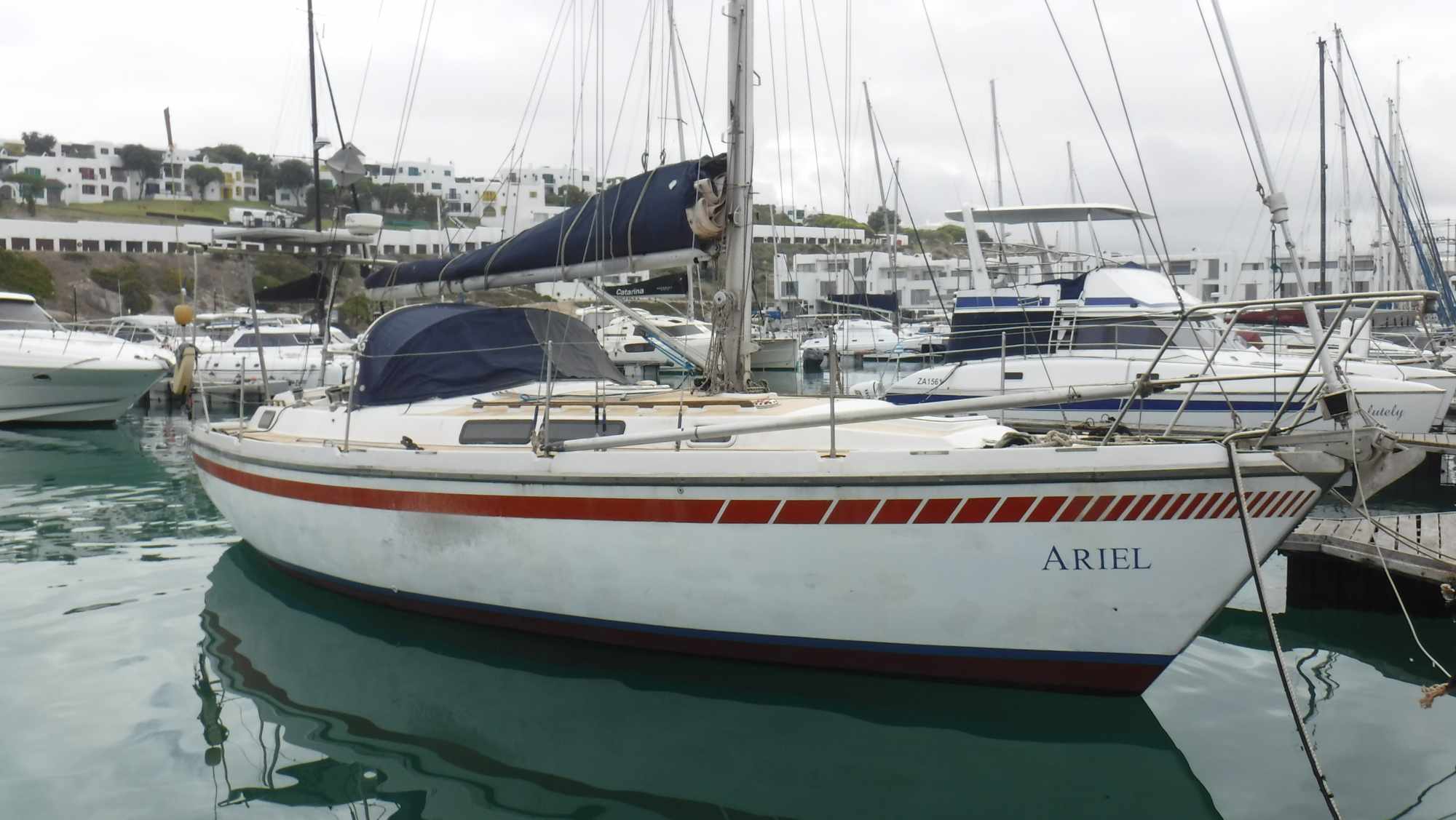

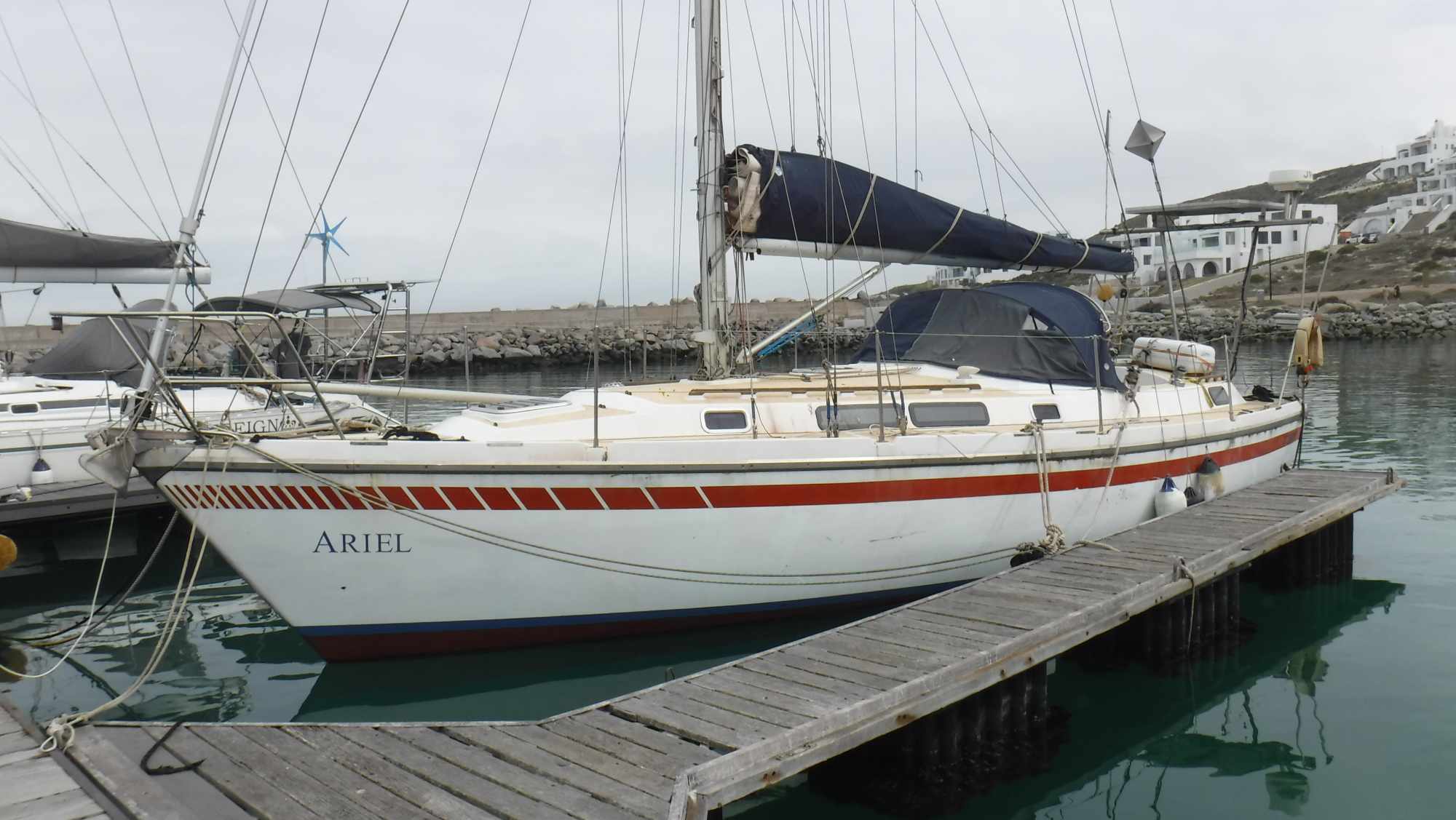

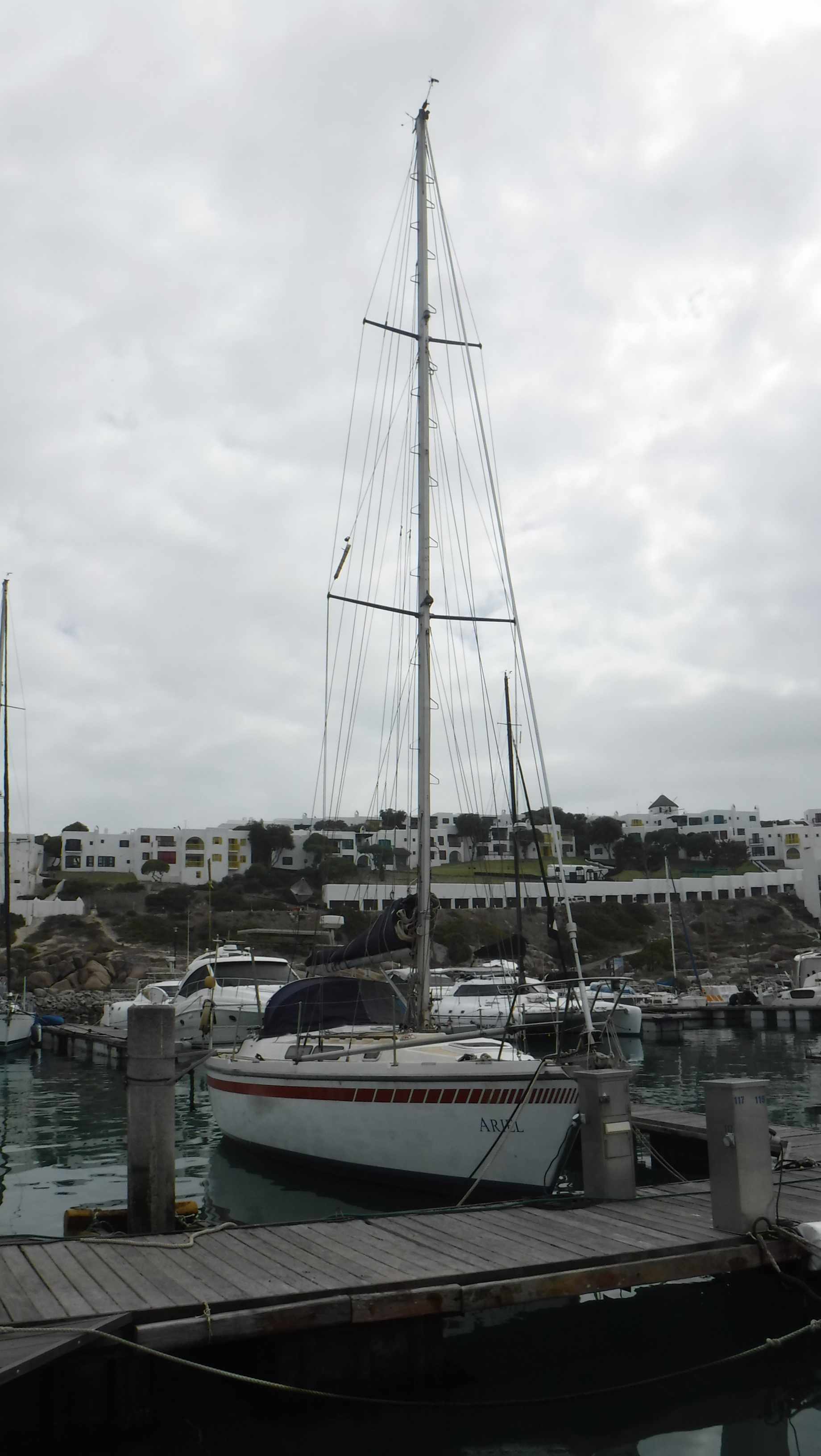

Sailing Vessel "Ariel"

Sailing Vessel: Ariel

SAS Listing Number: Unavailable

SAMSA : DTS 5075 B (Valid)

Dry Dock Certification – Valid Until October 2023

COF – Expired January 2023

1. Specifications

• Design: Lavranos Tosca 36
• Length overall – 35.92ft/ 10.95m
• Beam: 12.72 ft/3.88m
• Draft: 5.25ft/1.60m
• Keel: skeg fitted
• Displacement: 13 488lb /6 100kg
• Builder: Tosca Marine SA – Cape Town
• Hull: GRP
• Launched: mid 1980’s

2. Rigging

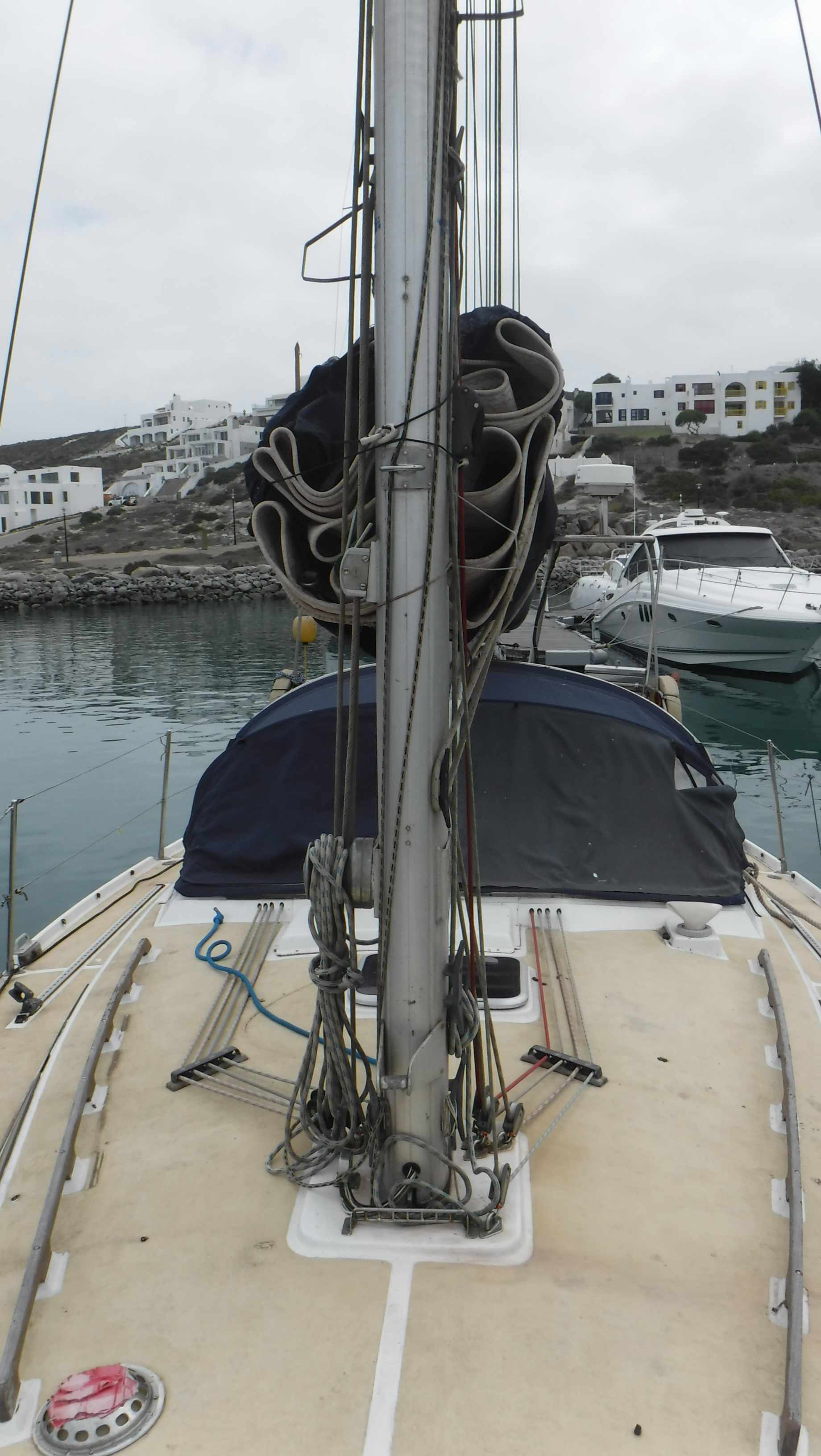

• Masthead sloop

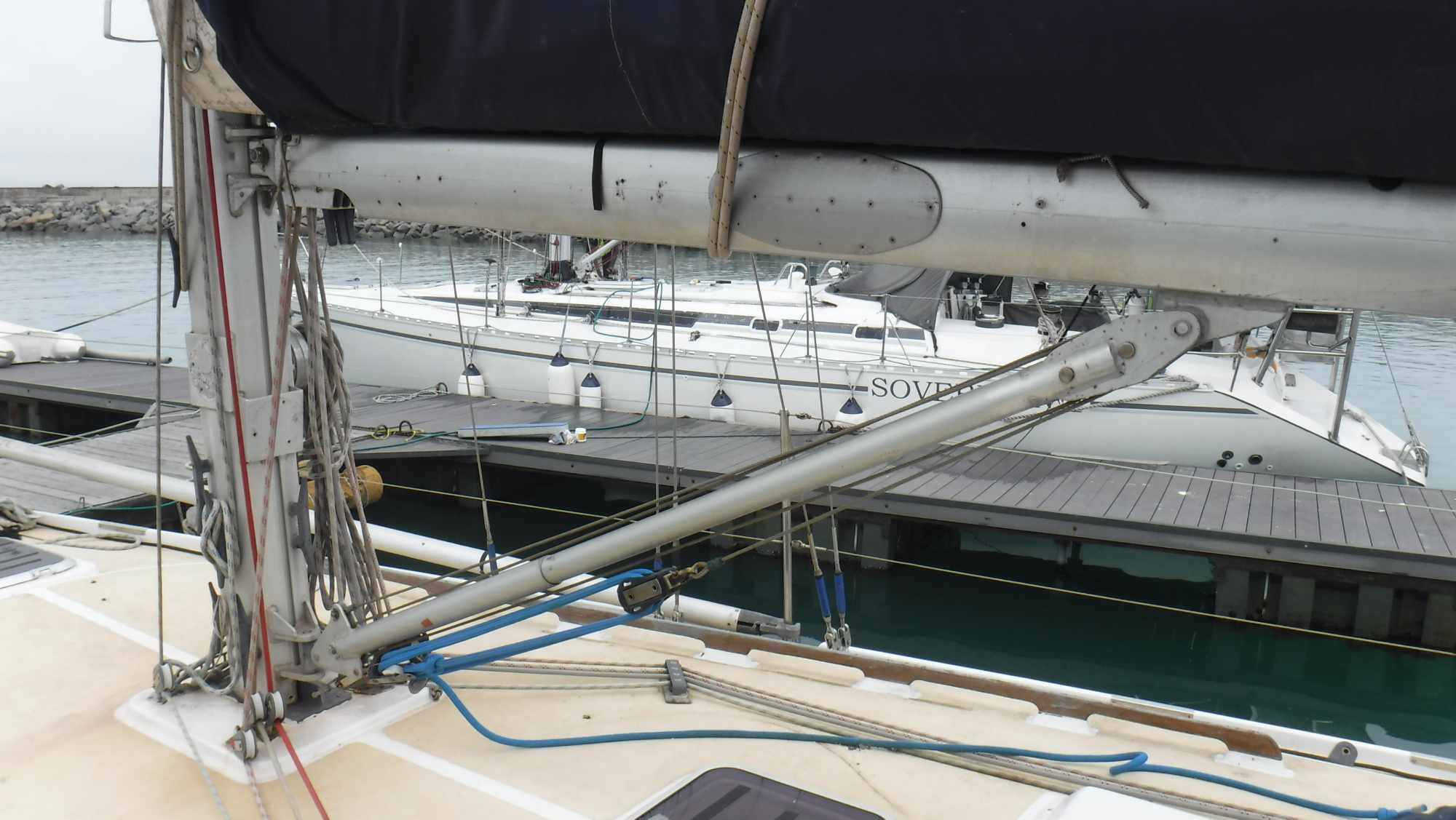

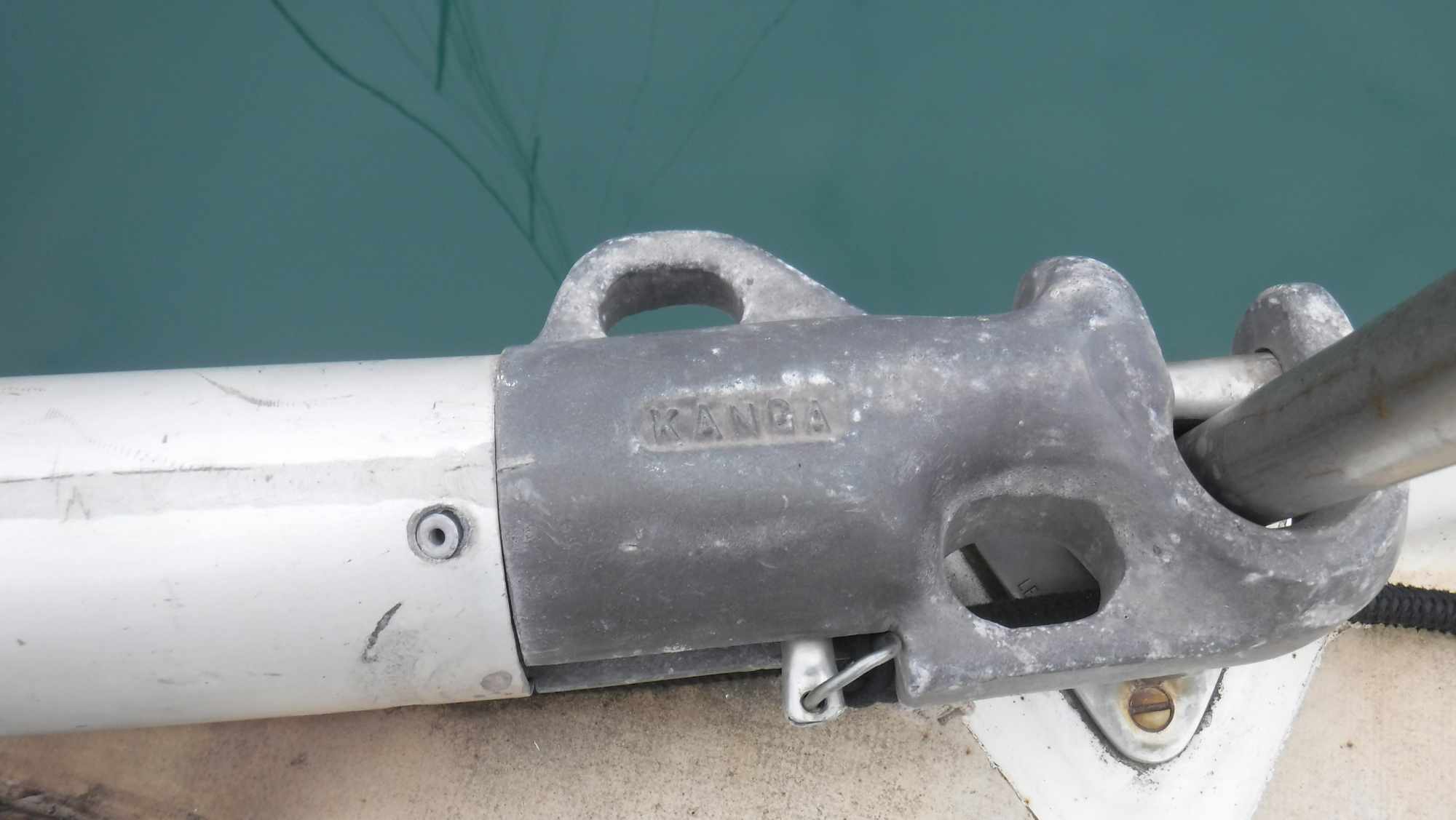

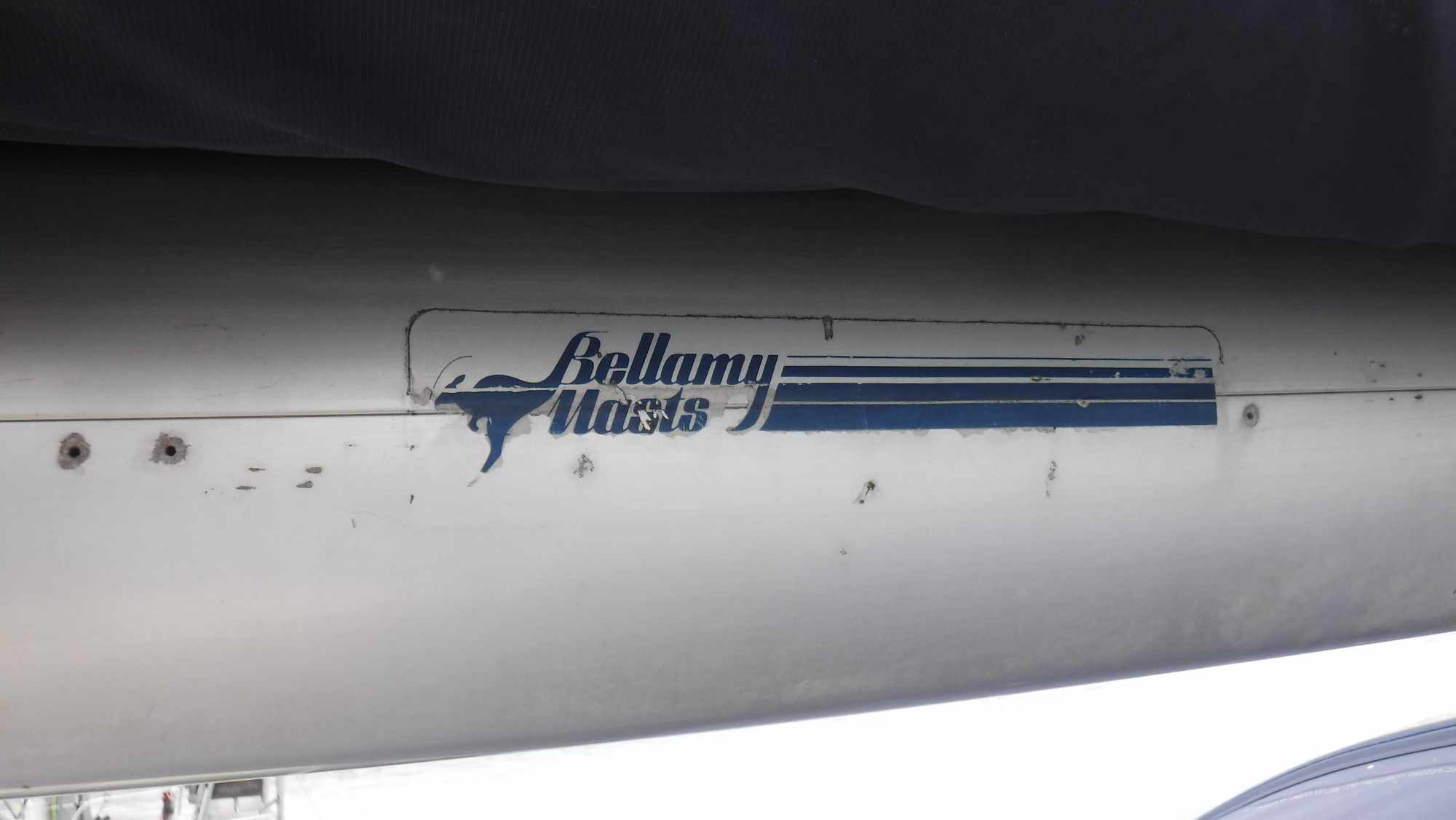

• Aluminium mast & boom with fitted spreaders and mast steps – Bellamy Masts
• Fitted boom kicker

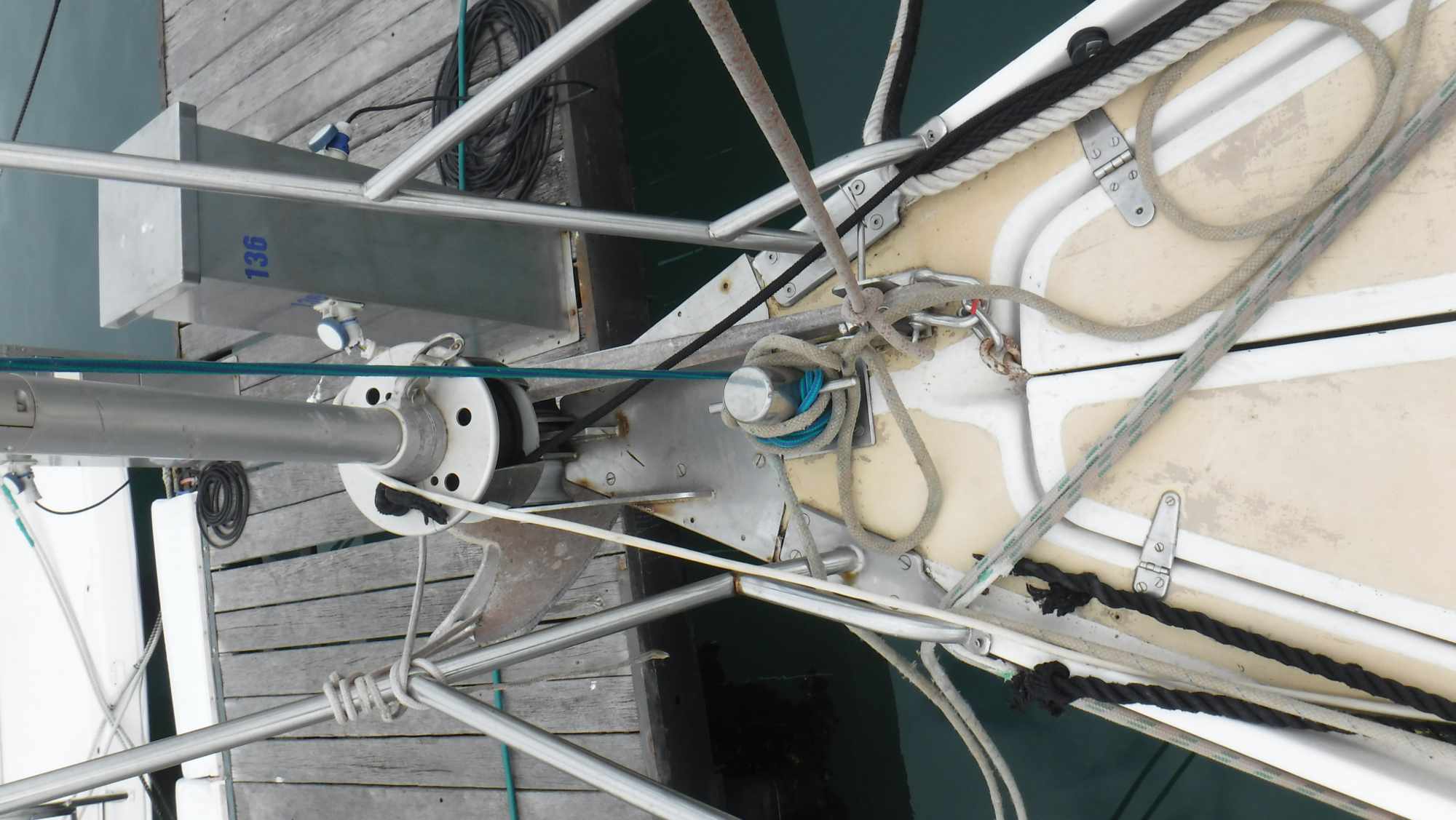

• Profurl roller furling system for Genoa (Genoa not fitted)
• Stainless Steel standing rigging & back stay

3. Sails

• Fully Battened Main Sail (26m²) in stack pack with lazy jacks
• Spare Main Sail (stored)
• # 2 (stored)
• # 3 (stored)
• # 2 Genoa (stored)
• # 3 Genoa (stored)
• Hood trysail (stored)
• Gennaker (stored)
• Spinnaker (stored) - spinnaker pole is present and aboard
• Quantum sails – Reacher (stored)

4. Winches & Anchor

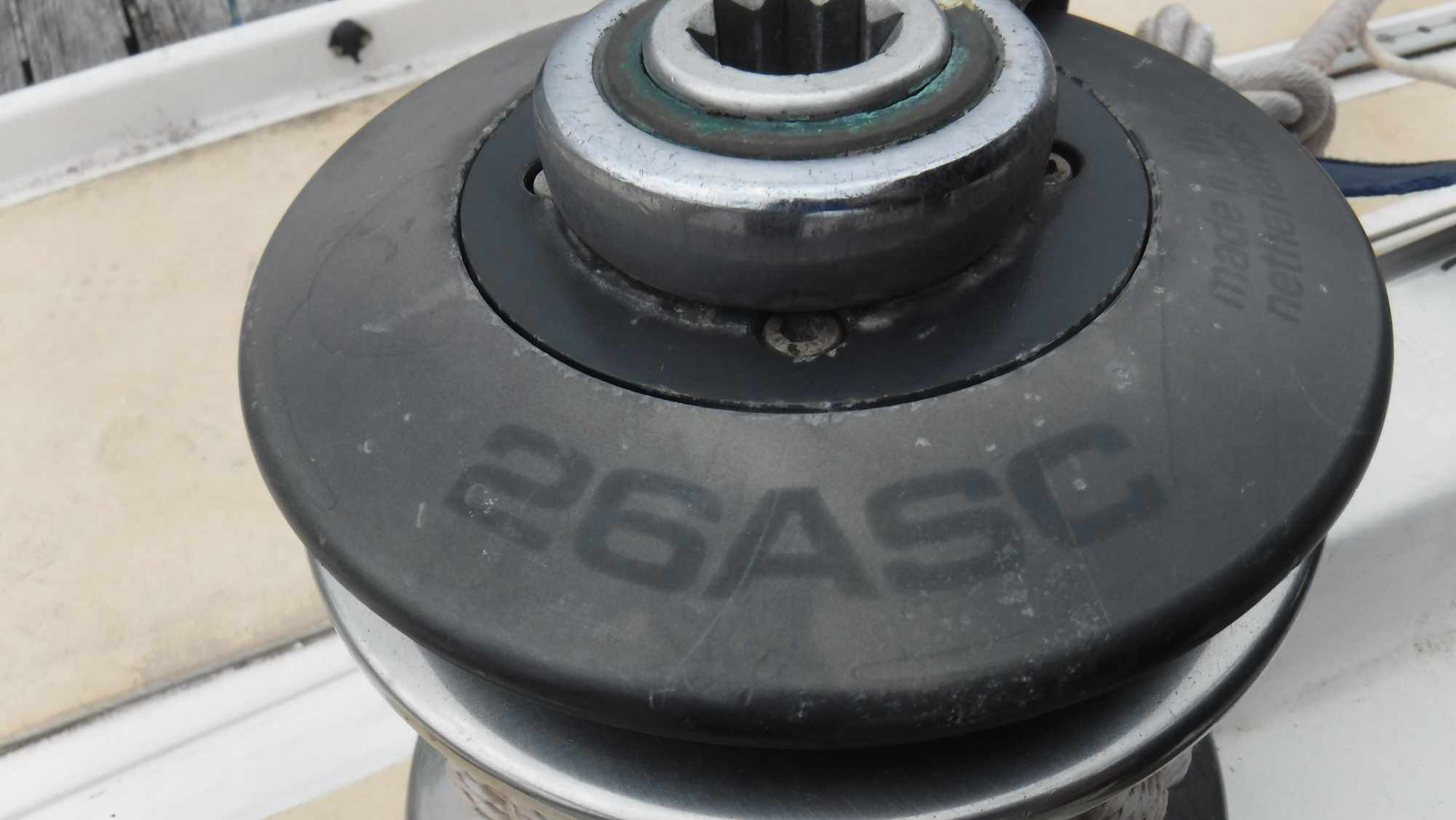

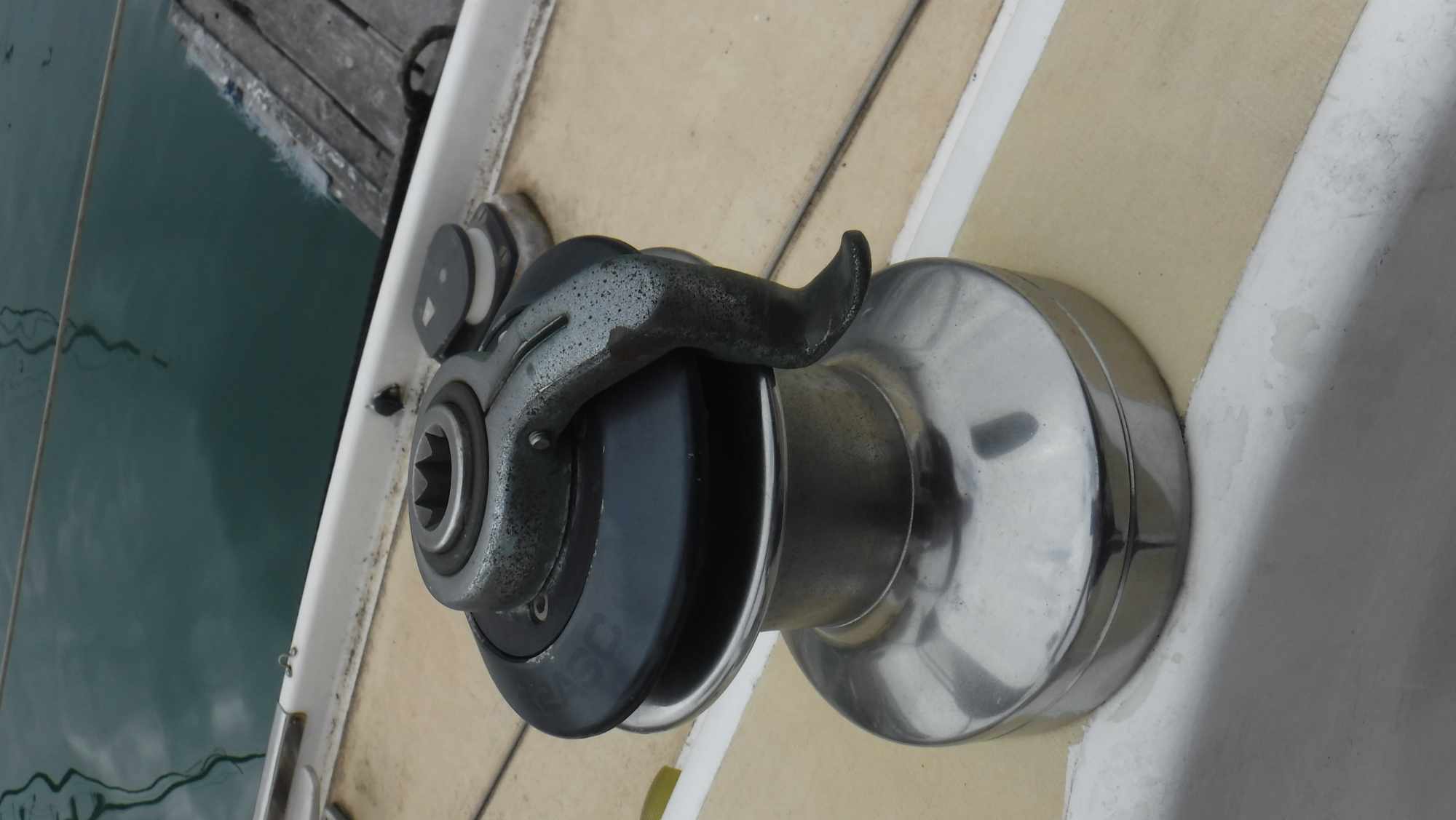

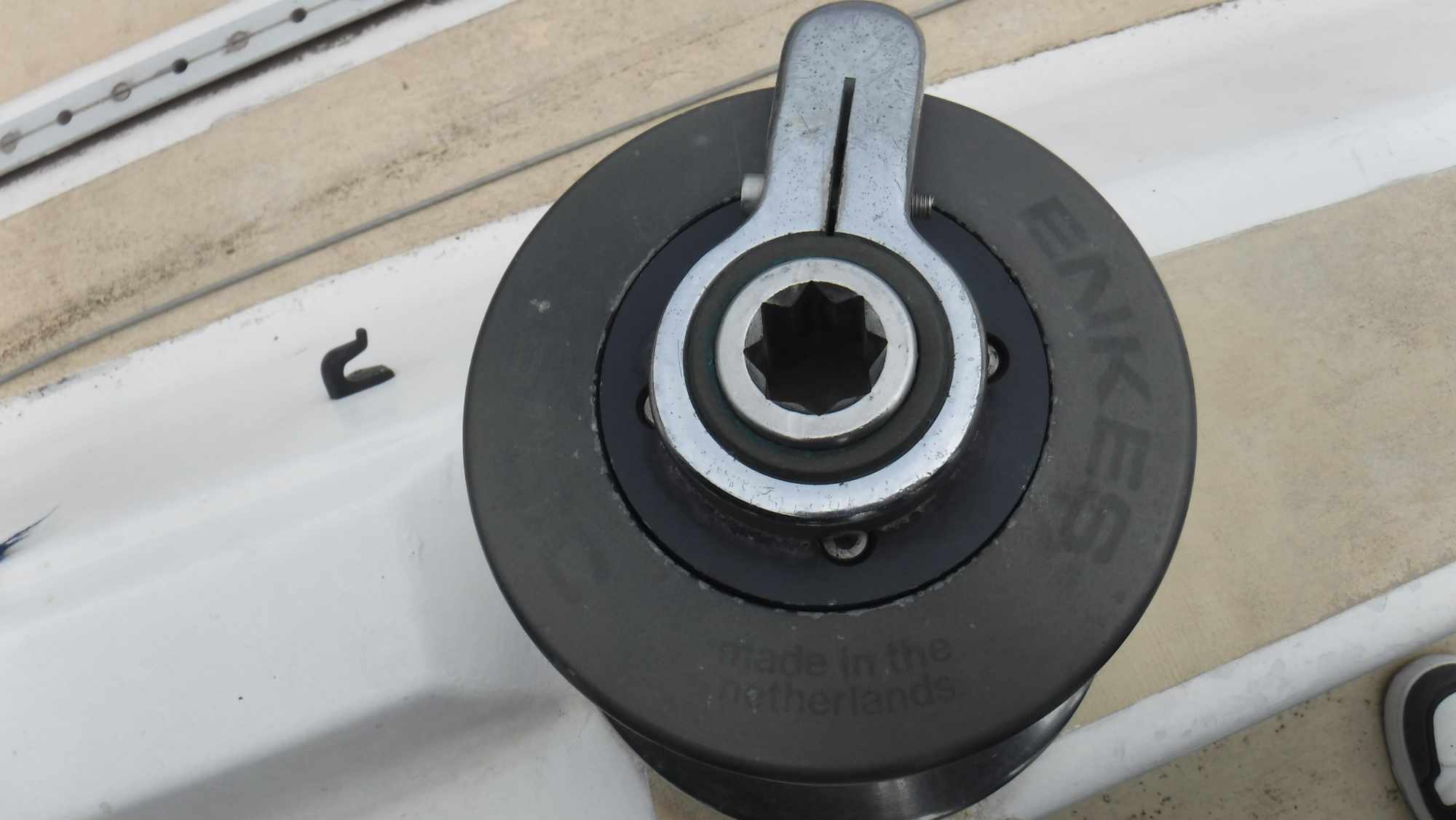

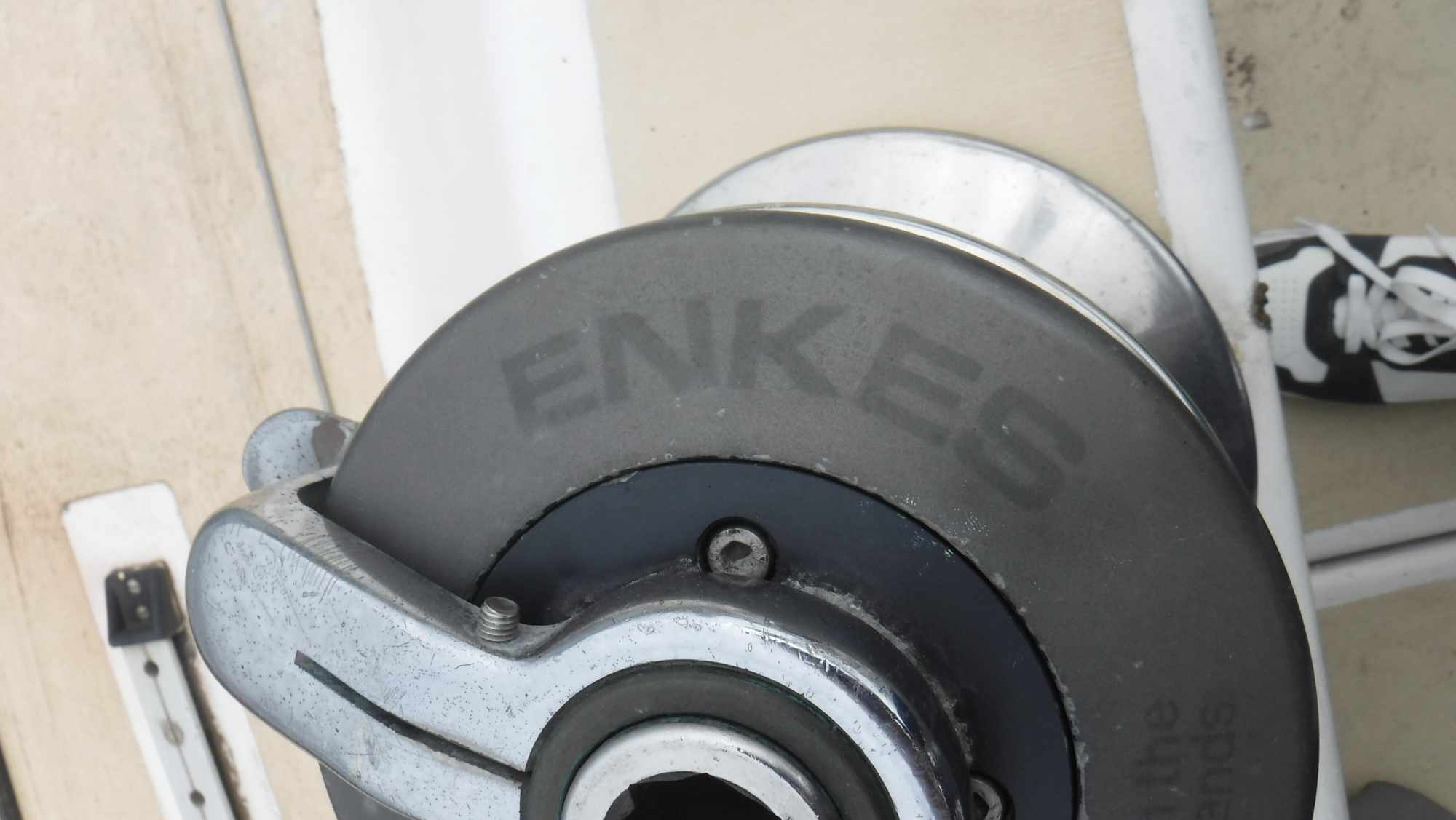

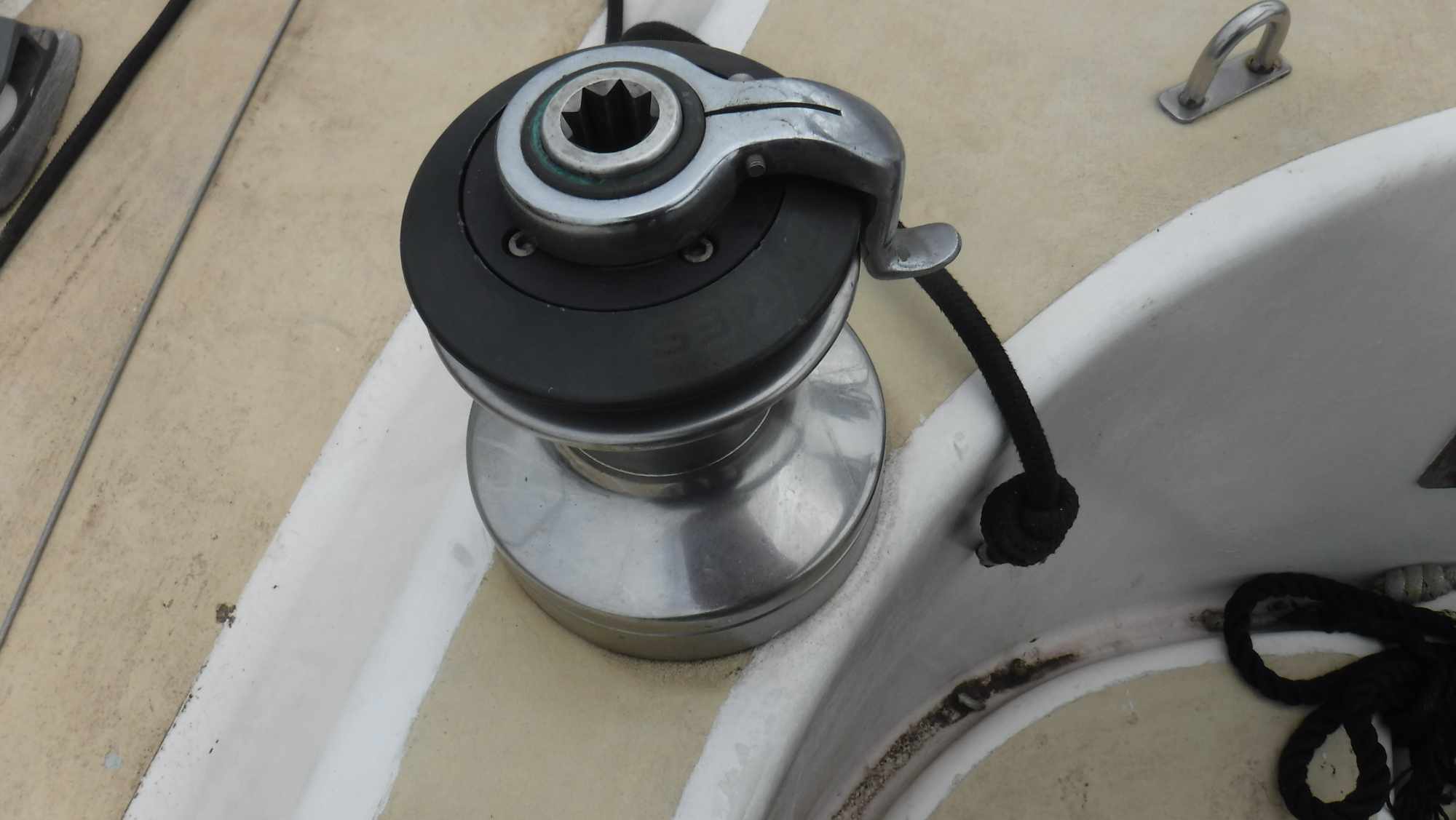

• 2 x Enkes 26 ASC primary - self tailing

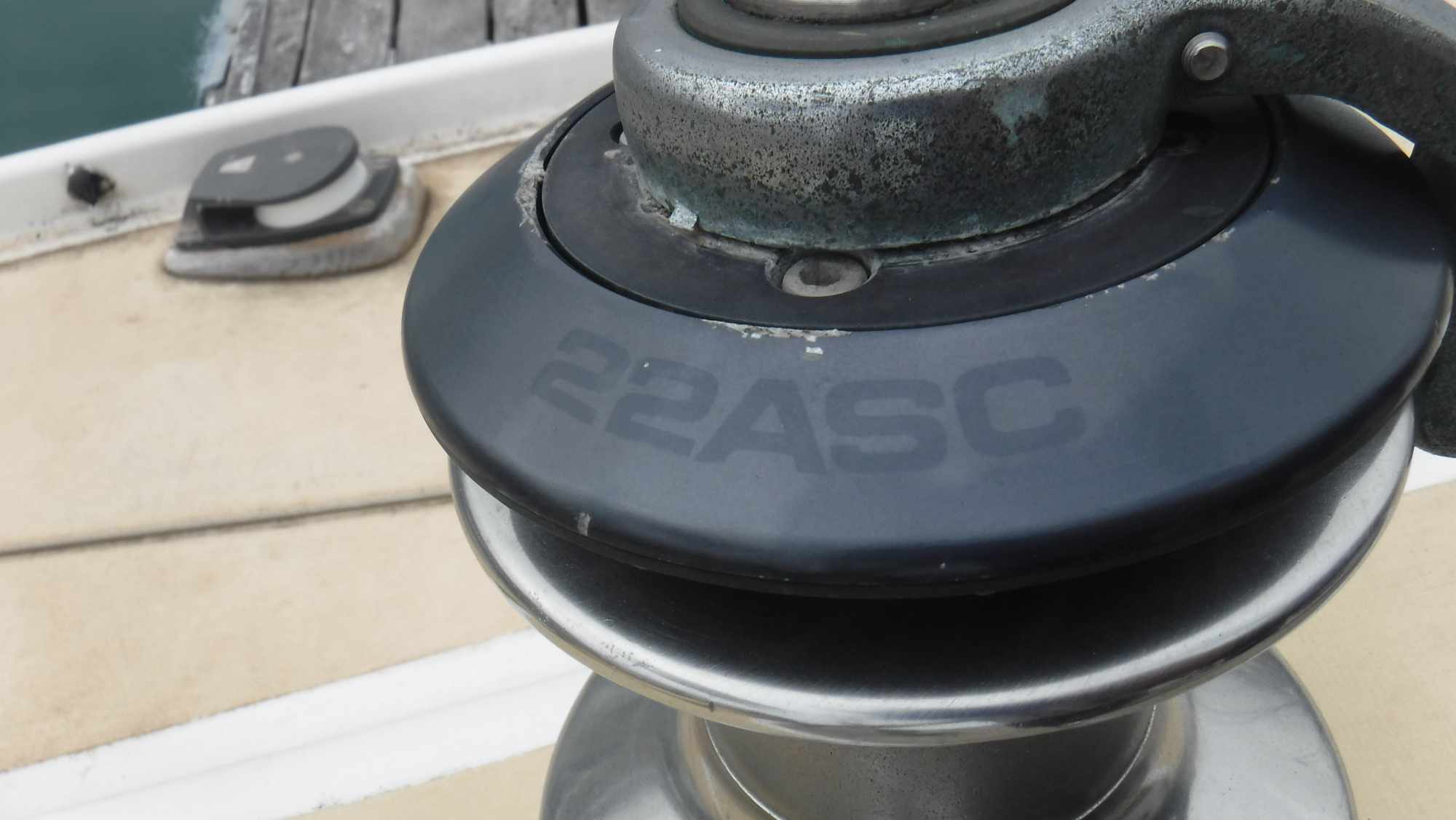

• 4 x Enkes 22 ASC secondary – self tailing

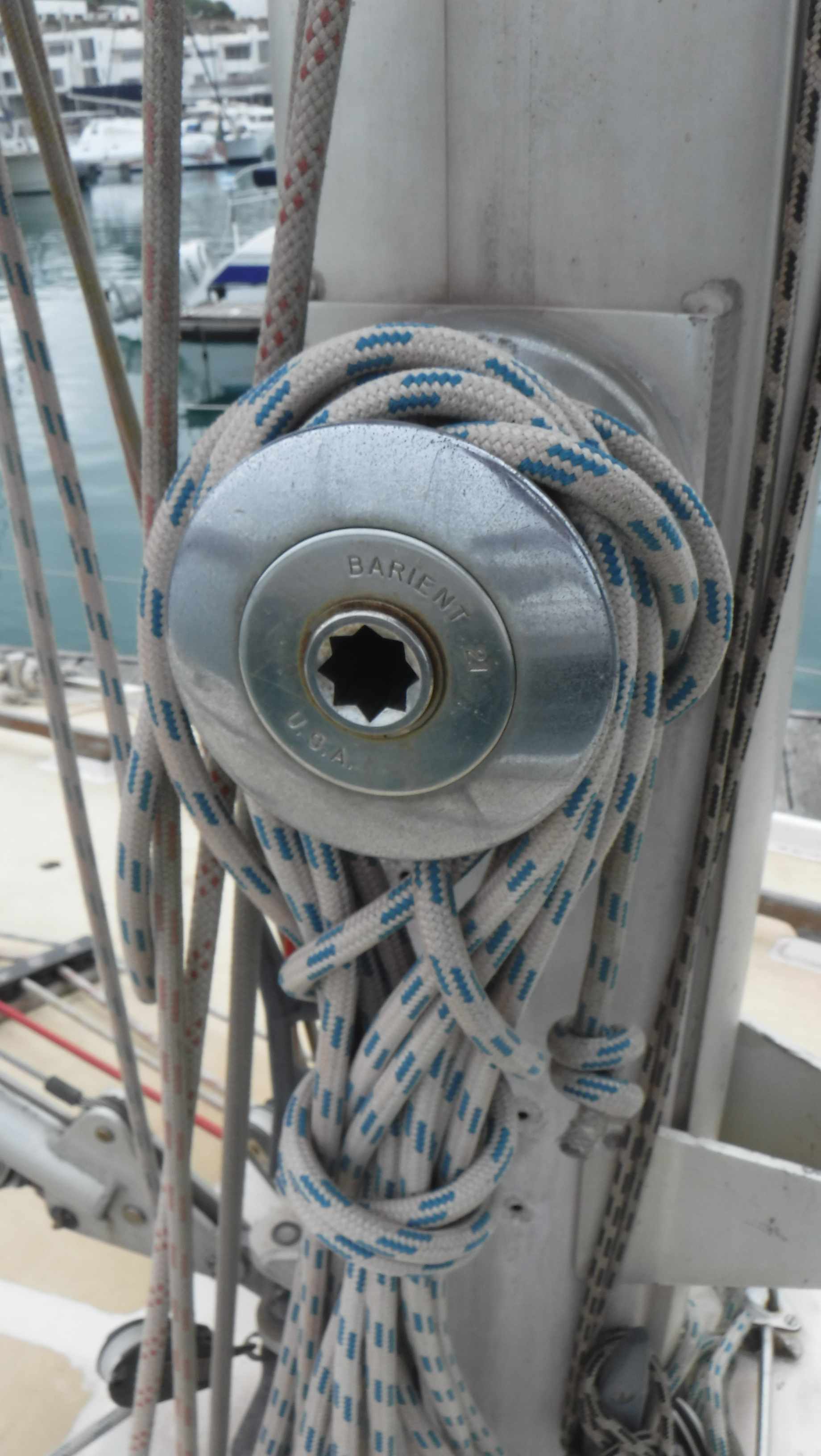

• 1 x Barient 21 mast fitted

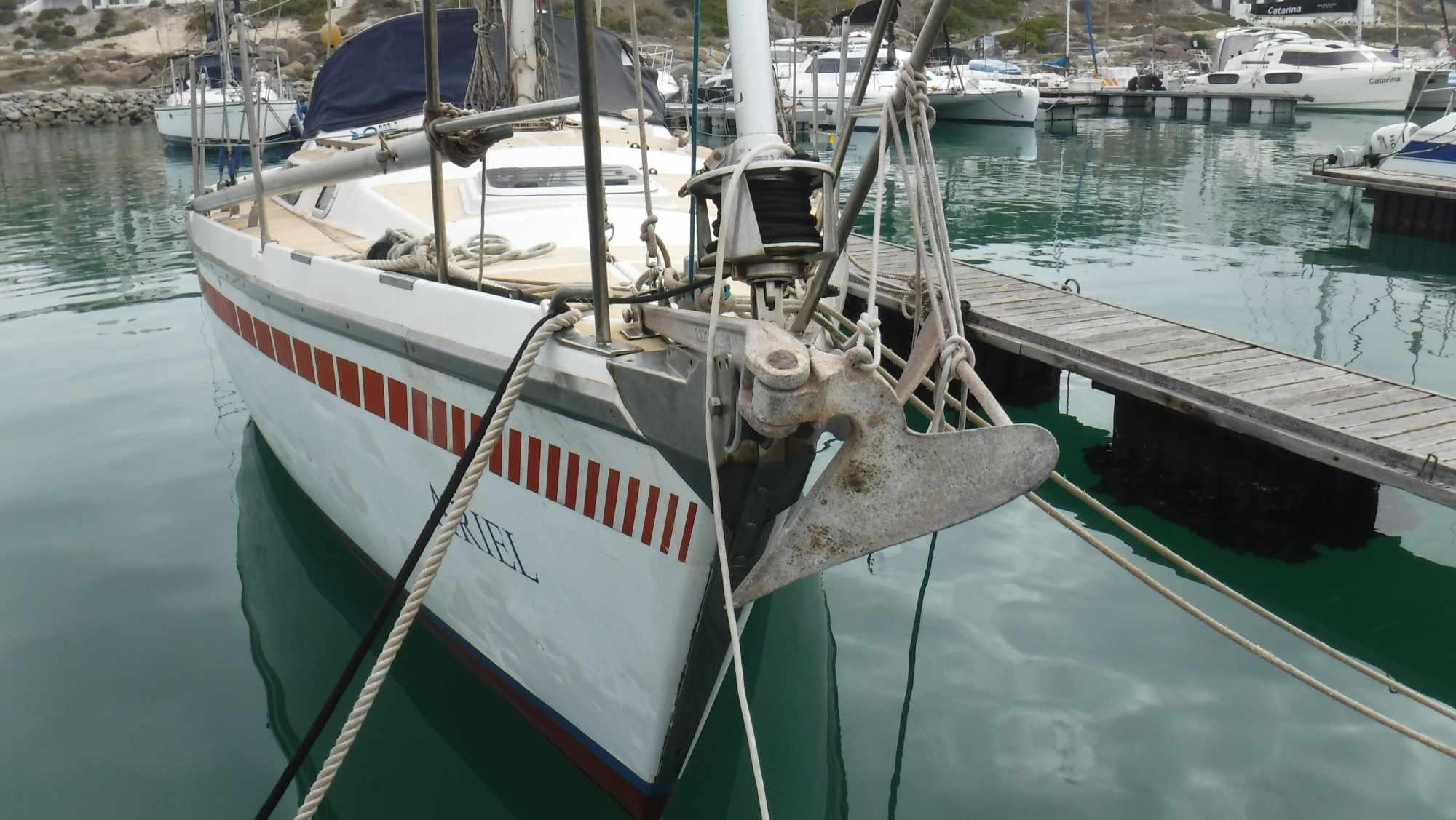

• CQR anchor with chain and rope

5. Engine & Batteries

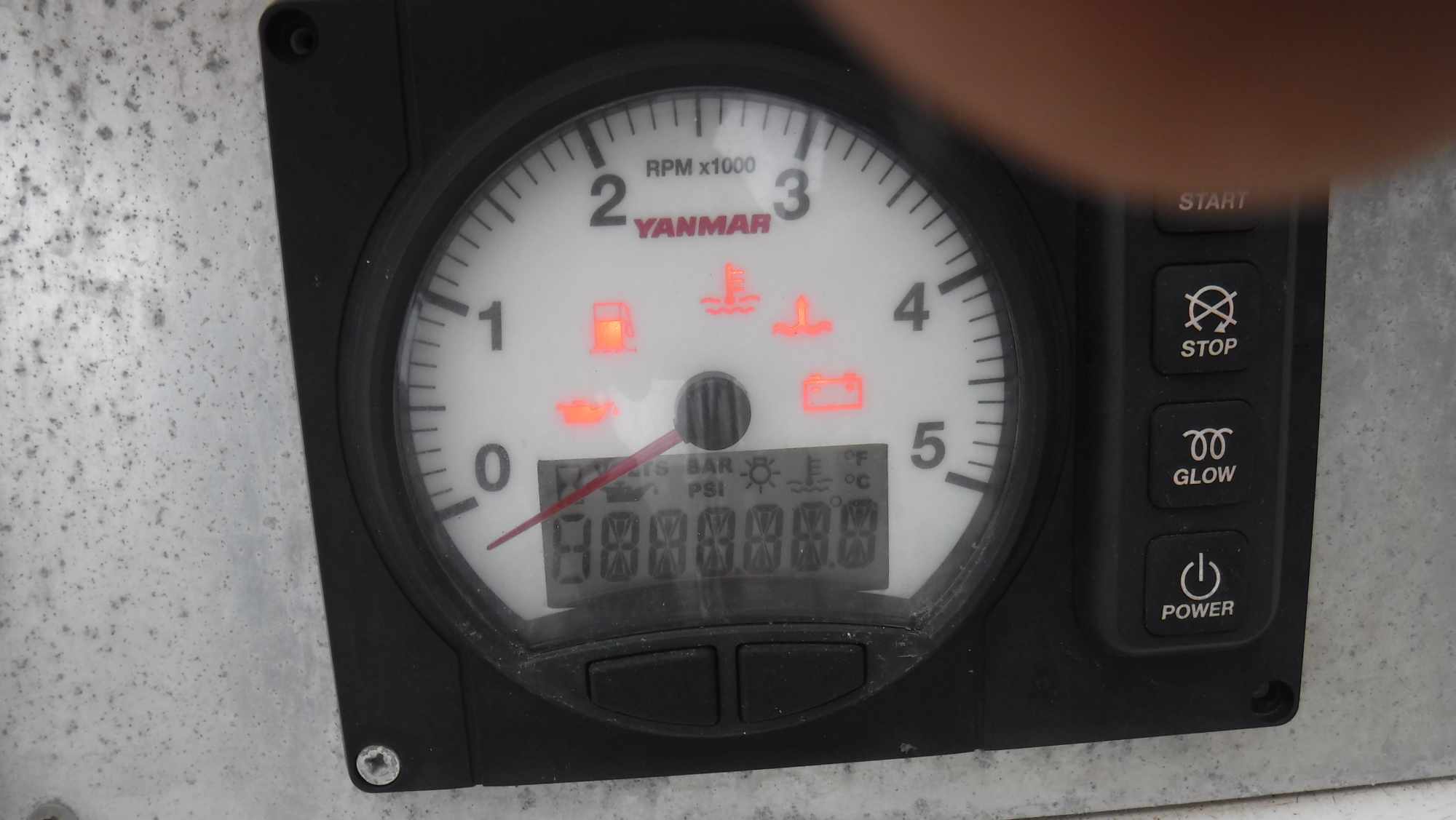

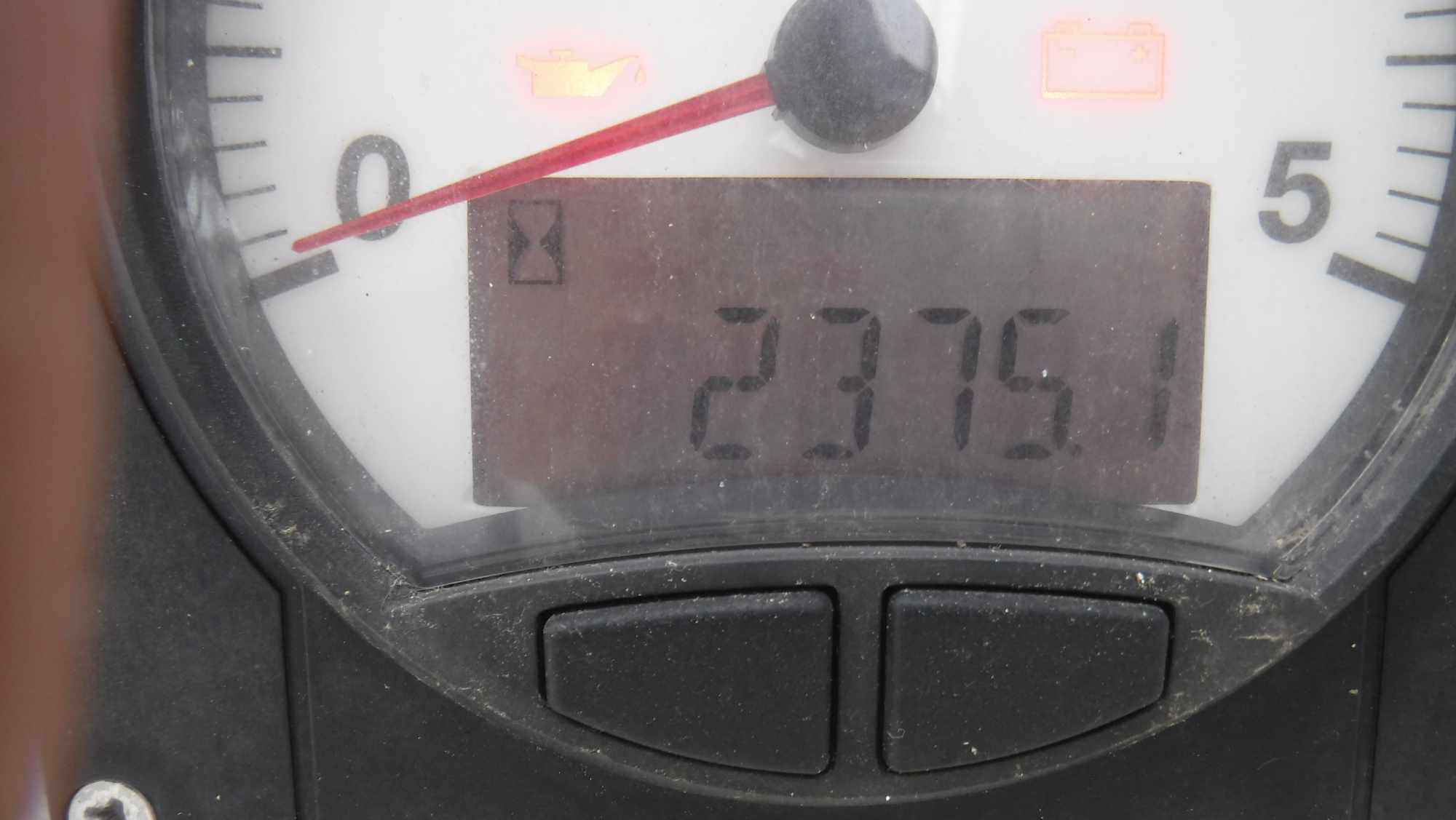

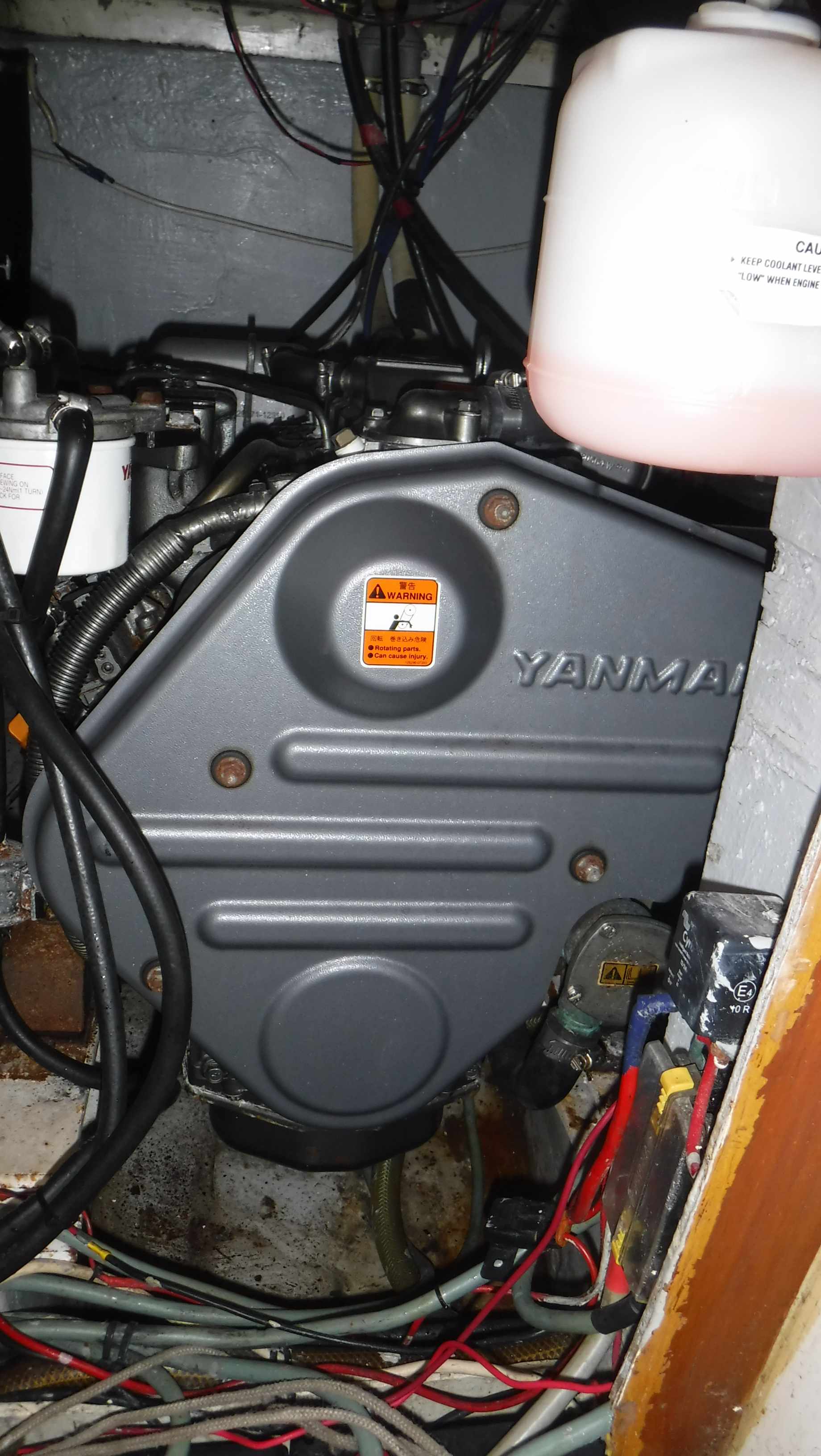

• 2019 Yanmar Model 3JH5CE 3 cylinder inboard diesel engine with 2019 KM35P gearbox

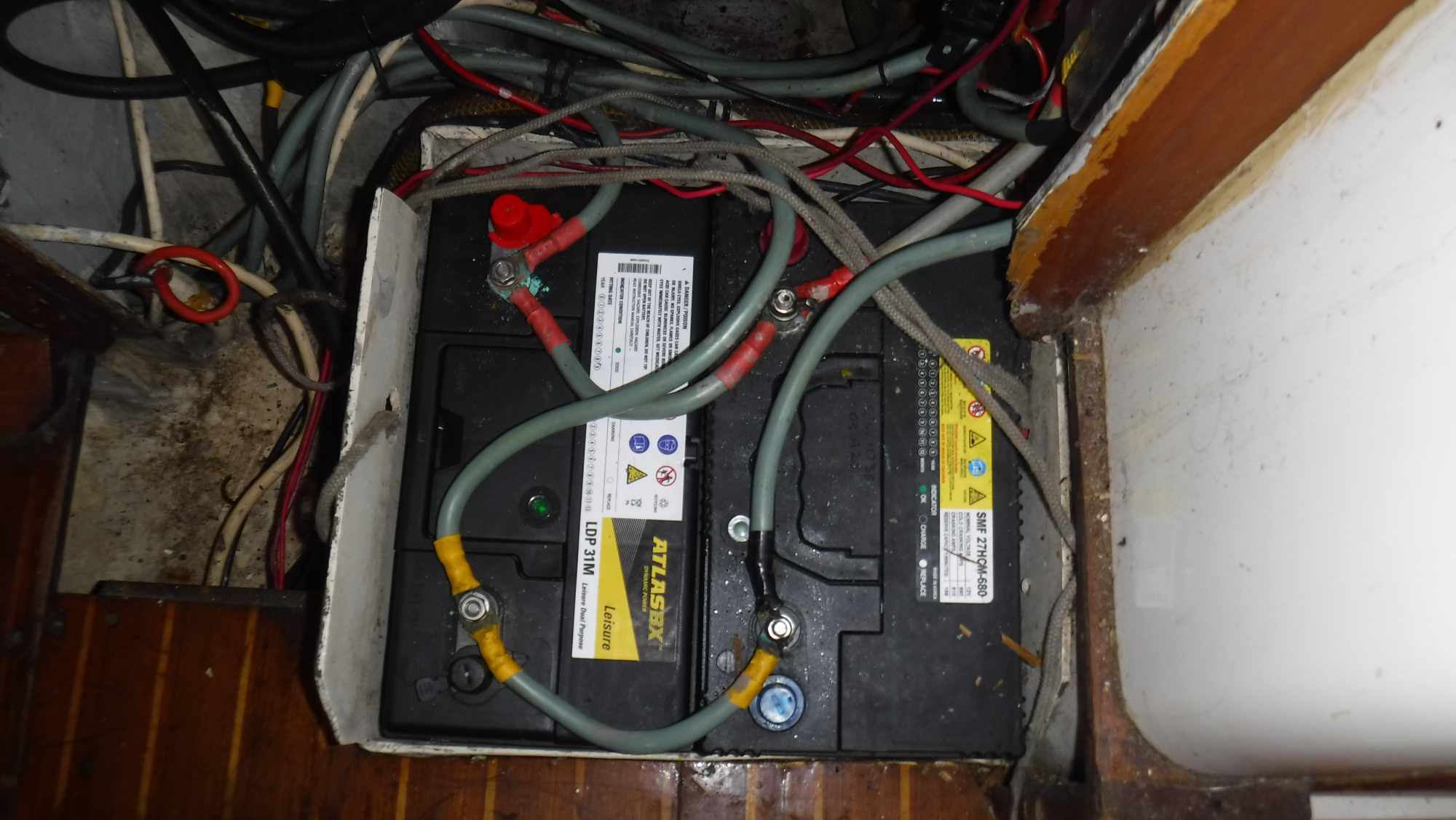

• 2 x 12 Volt starter and house batteries
• 250L fitted diesel tank as per specifications

6. Steering:

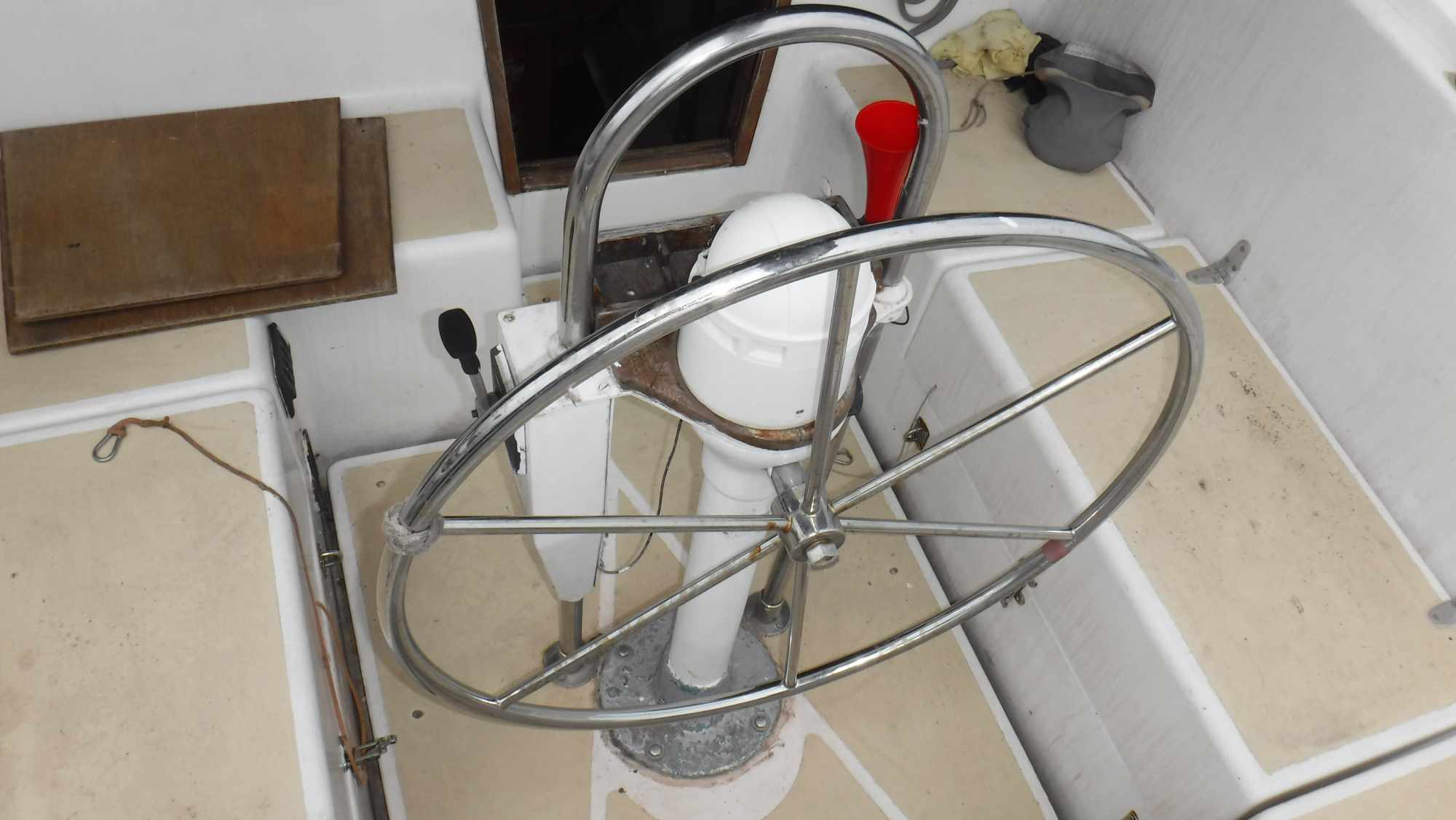

• Stainless steel witlock pedestal steering with fitted steel cabling to rudder
• Emergency steering can be fitted to top of rudder shaft in the cockpit

7. Electronics and Electrical

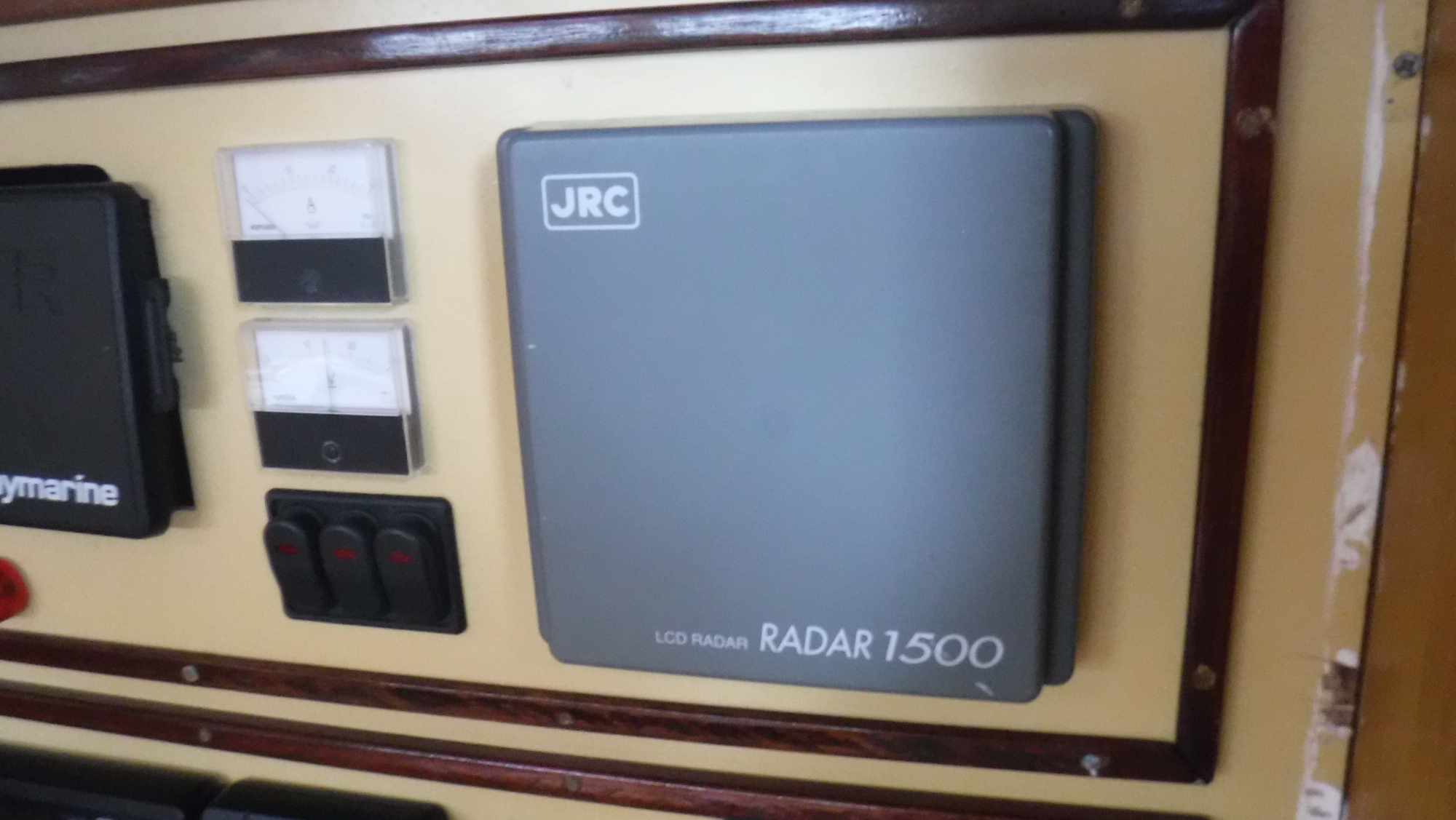

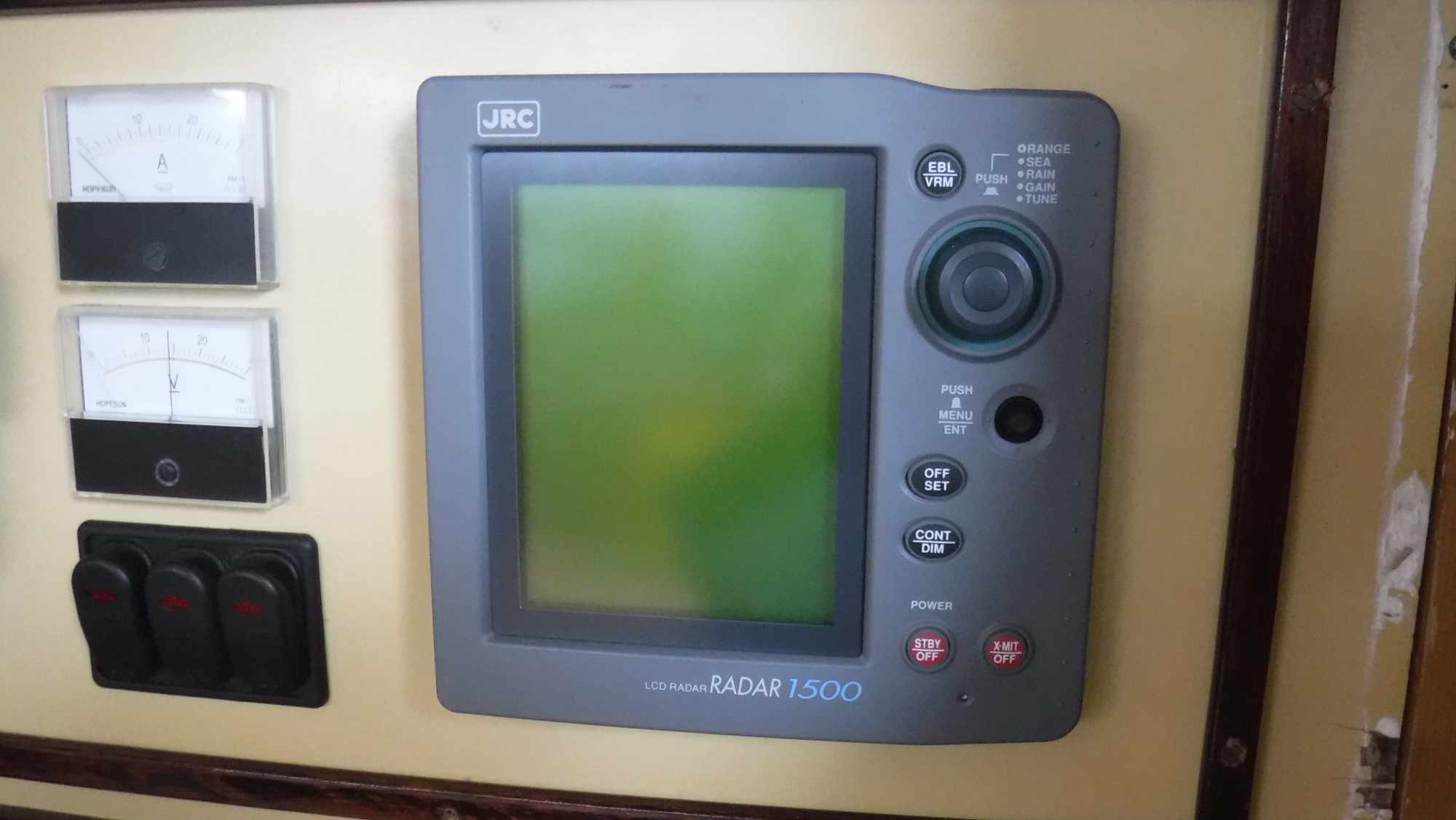

• JRC LCD radar model 1500 (saloon fitted with external fitted radar dome)

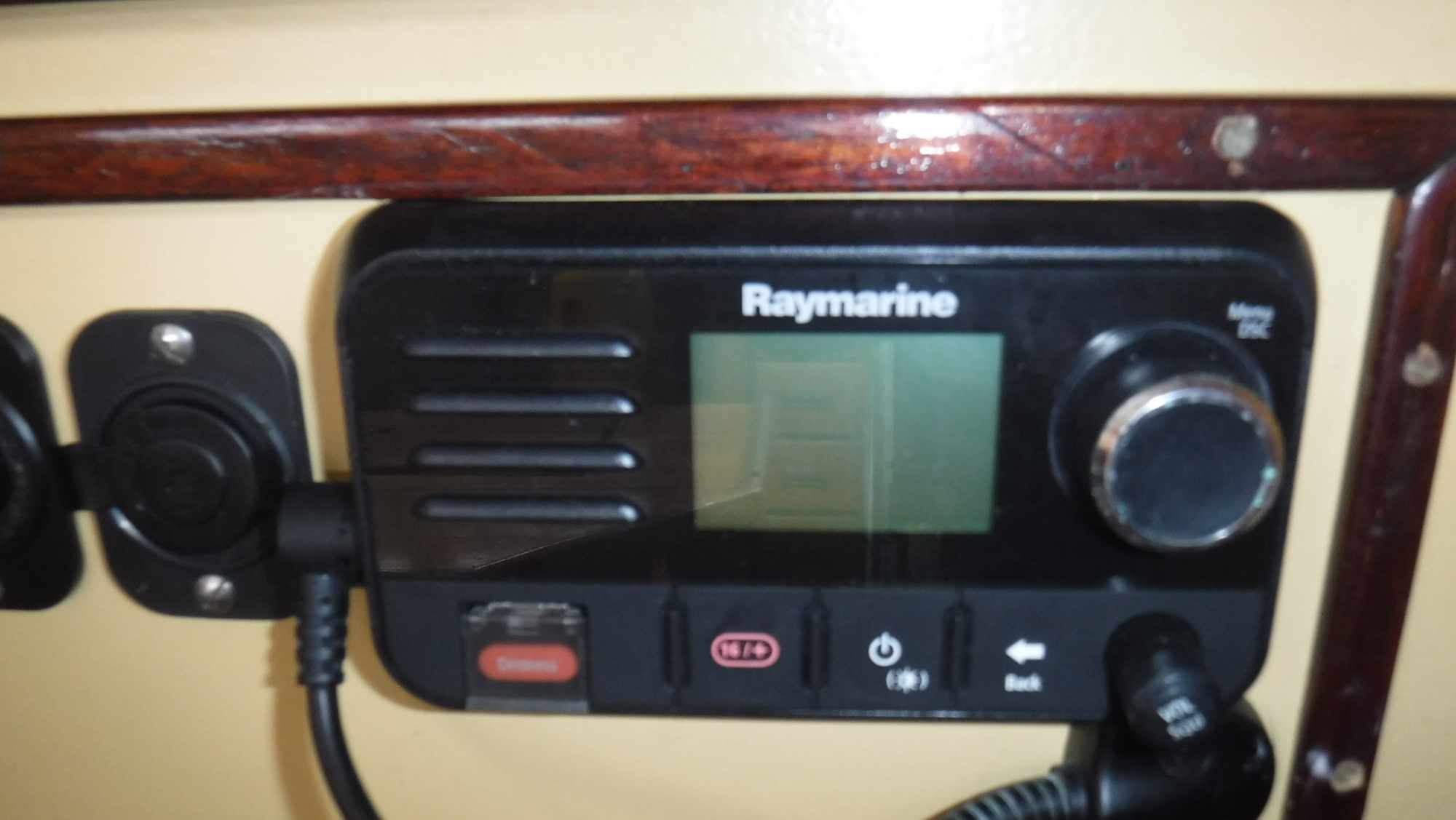

• Raymarine 63 VHF 16 Chanel marine radio (saloon fitted)

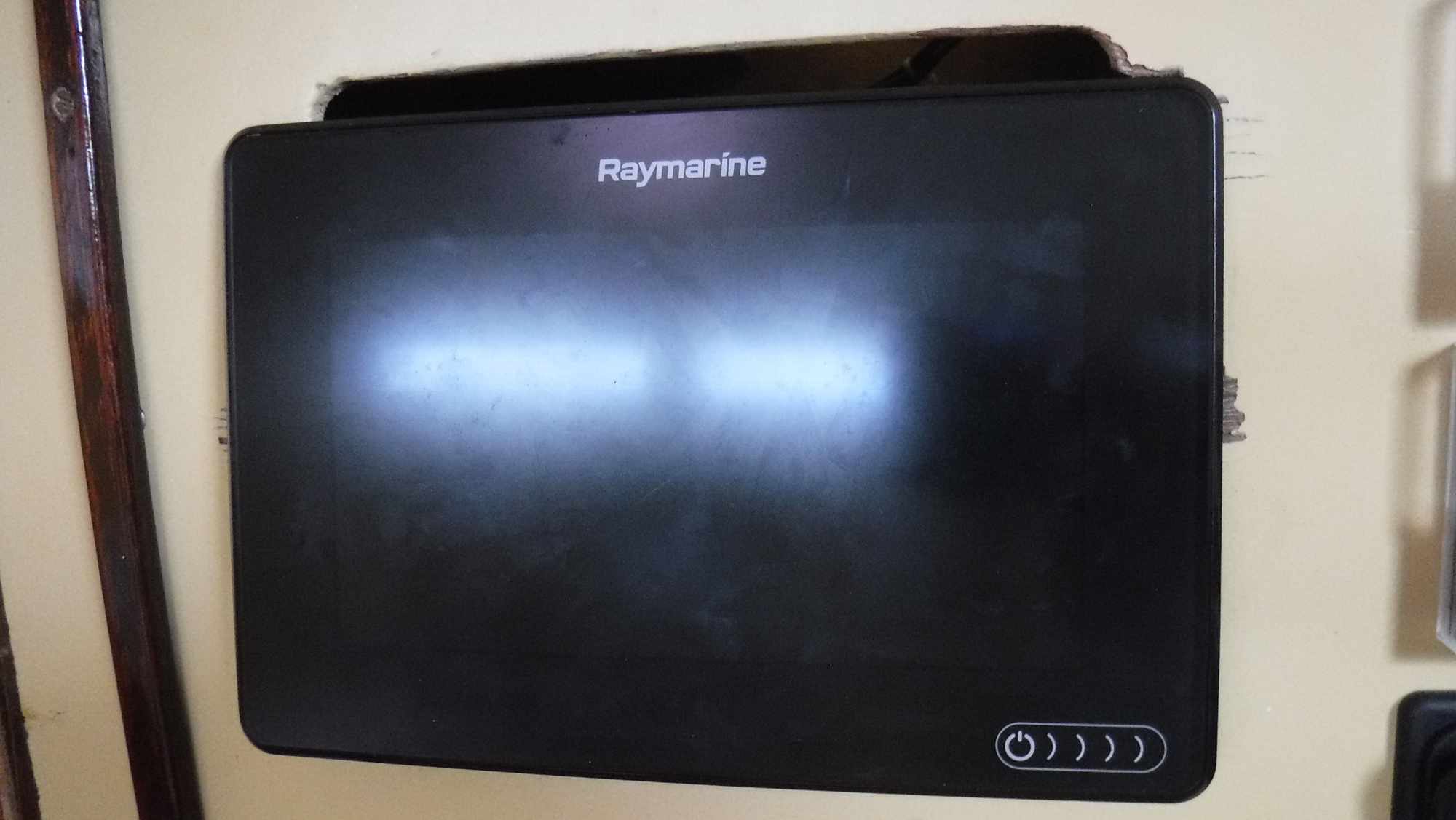

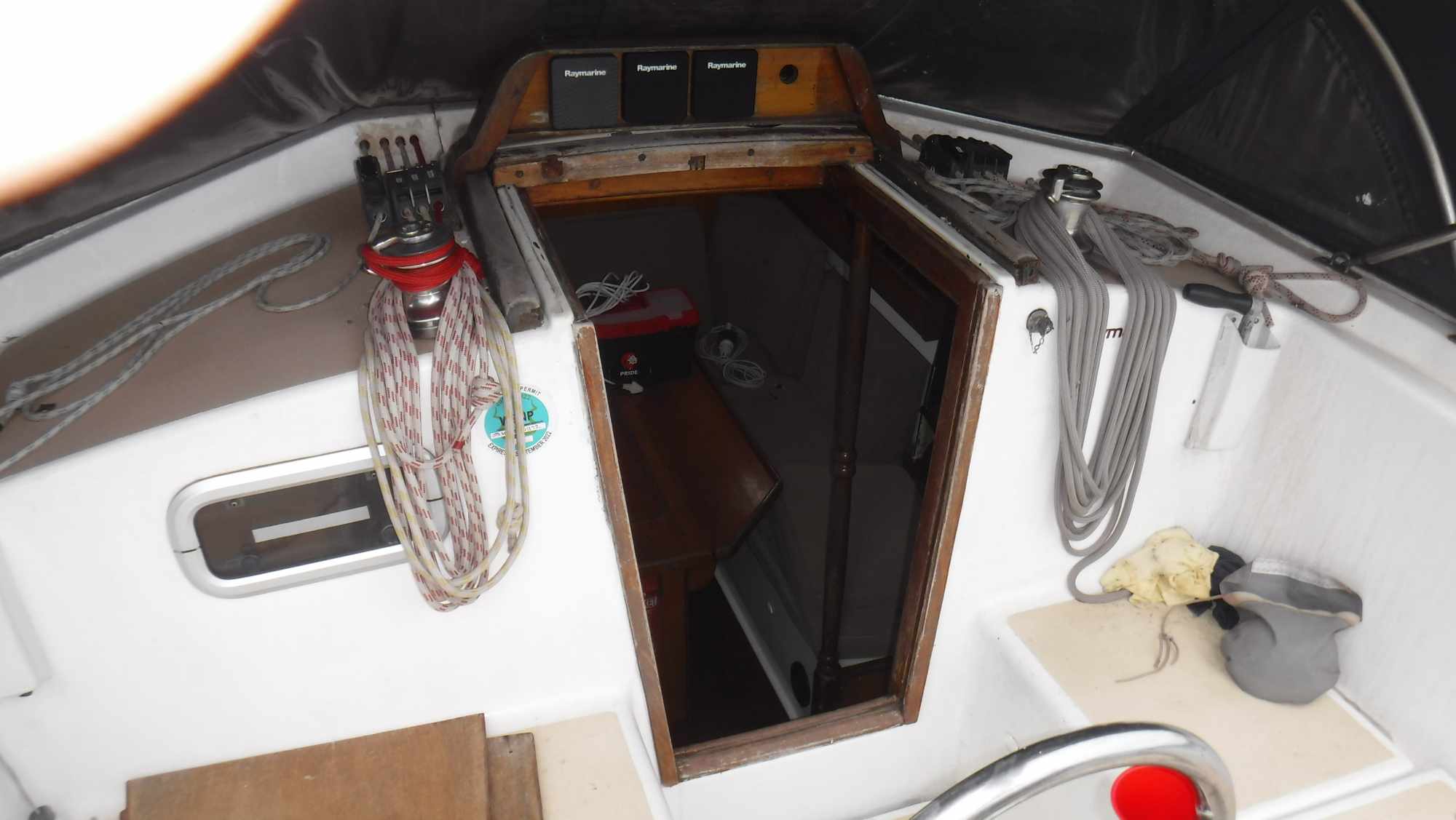

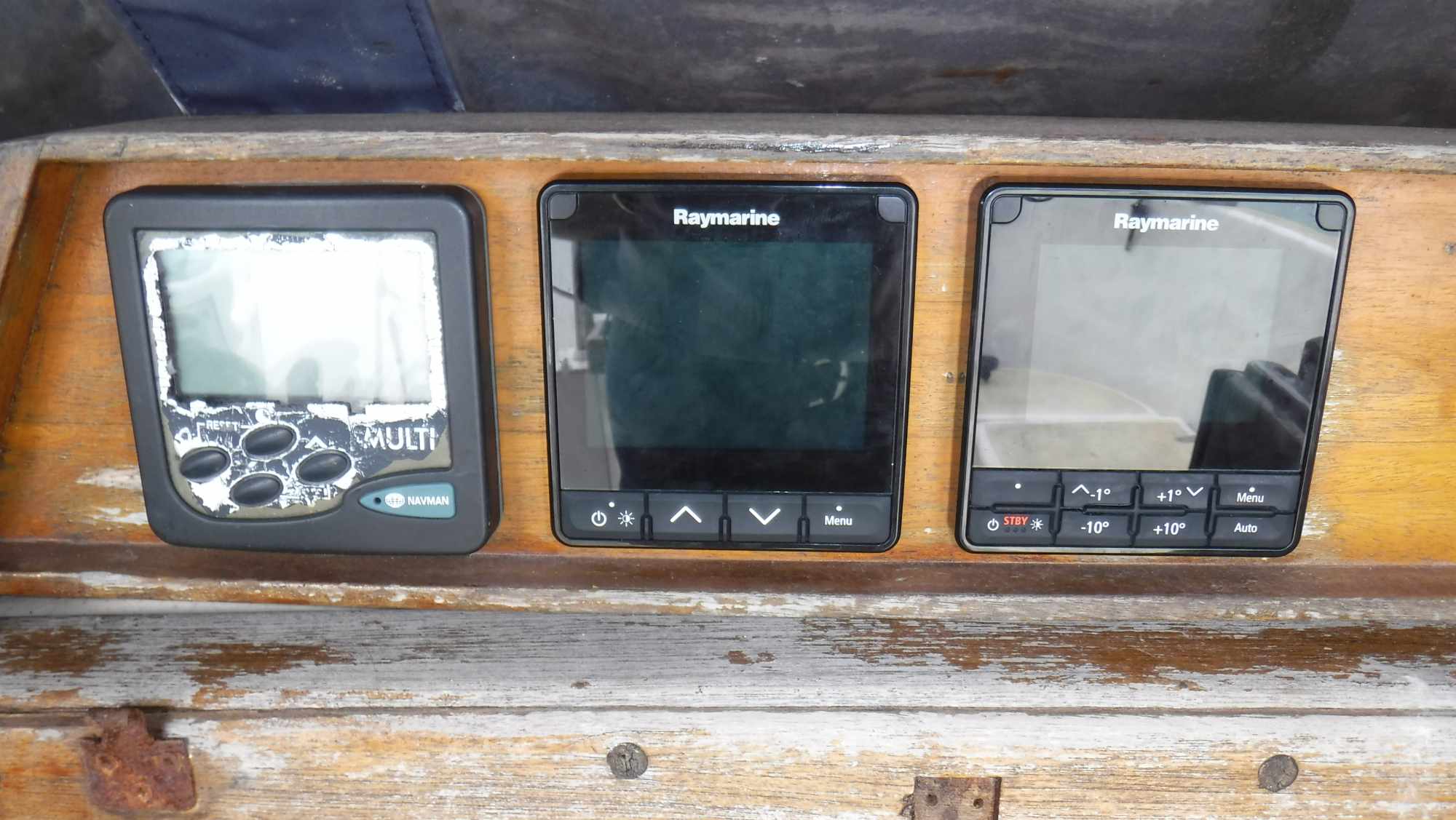

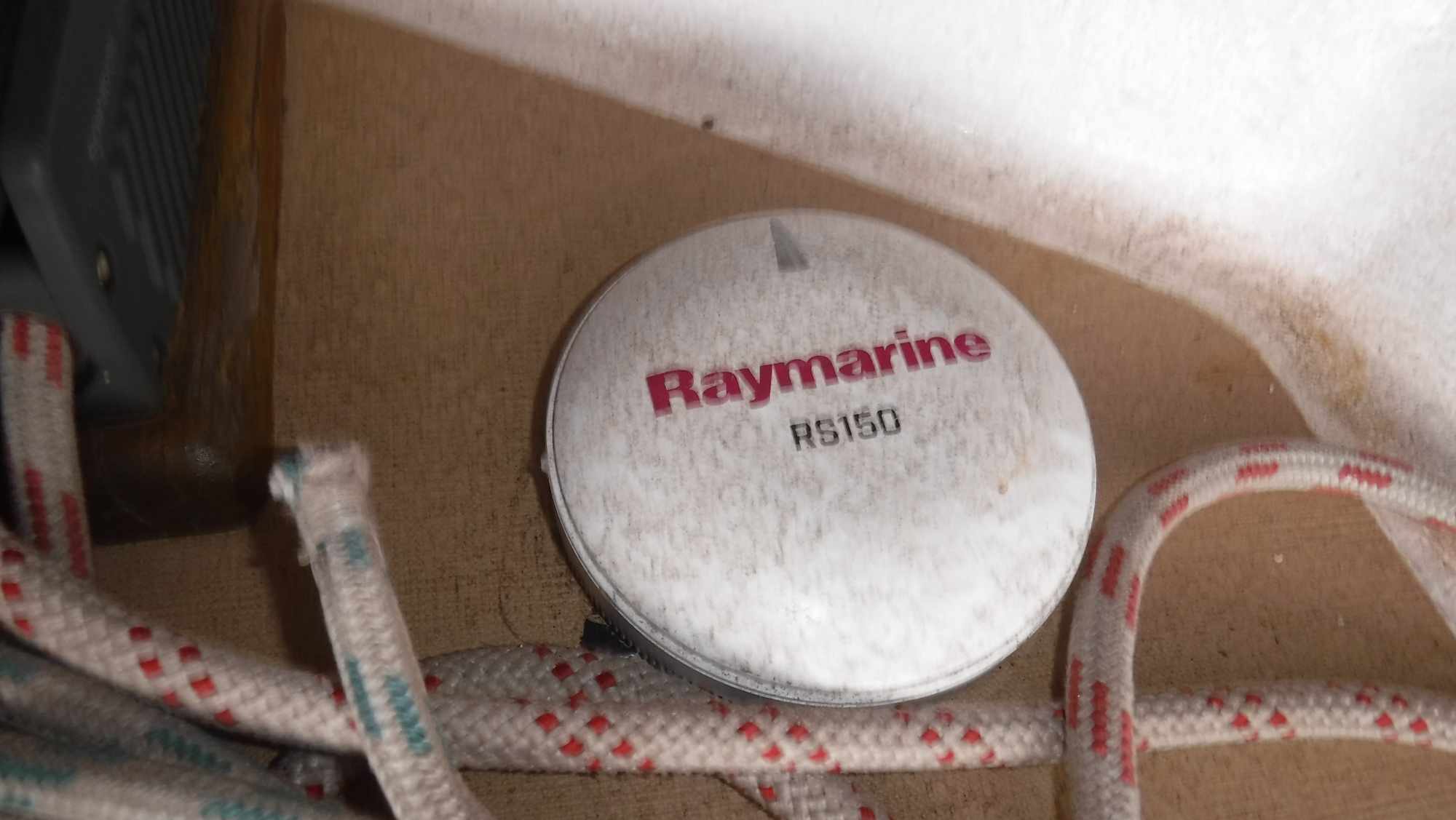

• Raymarine plotter and auto pilot (saloon fitted and connected to cockpit fitted control panels)

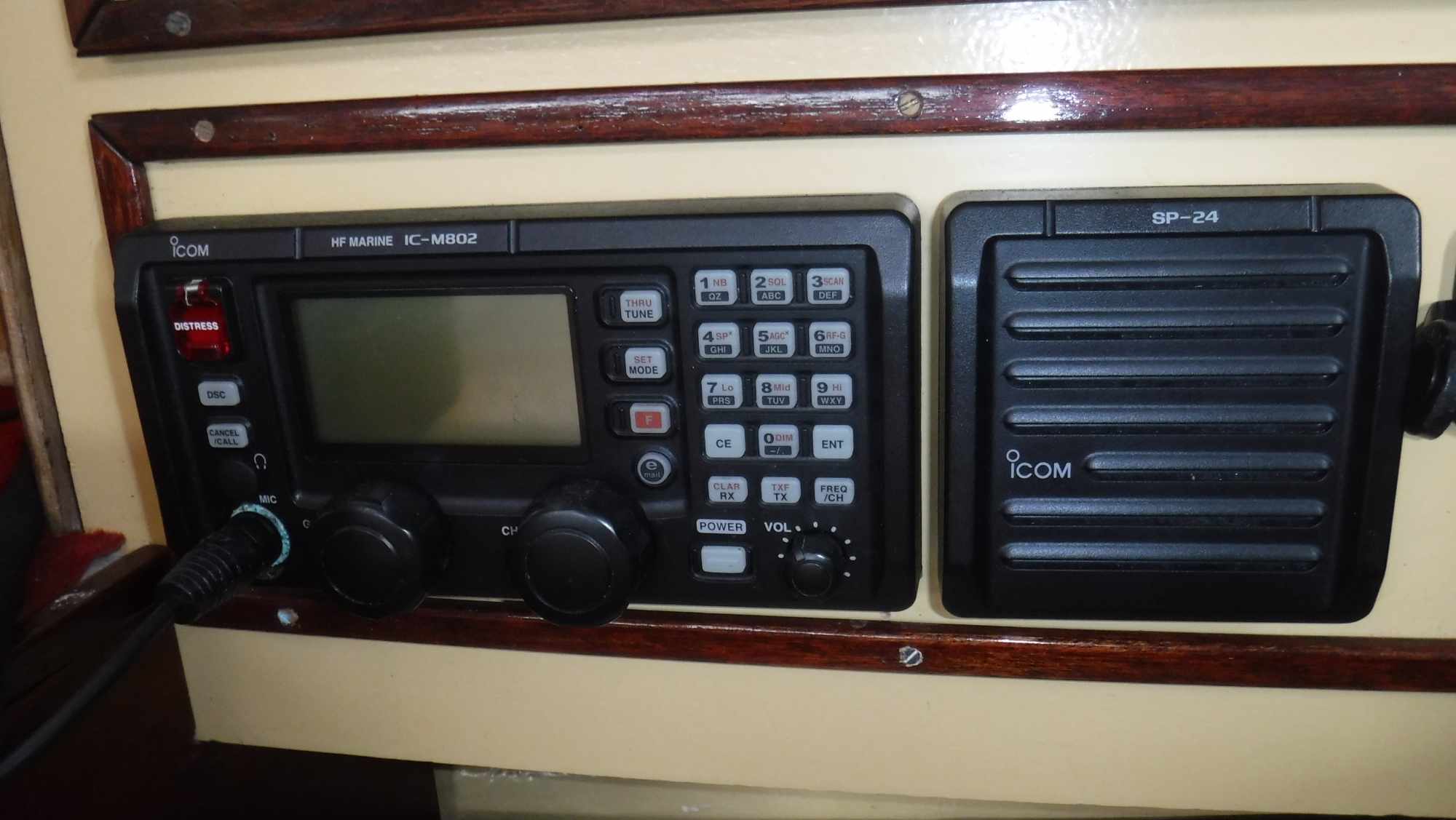

• Icom HF Model K-M802 marine transceiver radio with SP-24 Speaker (saloon mounted)

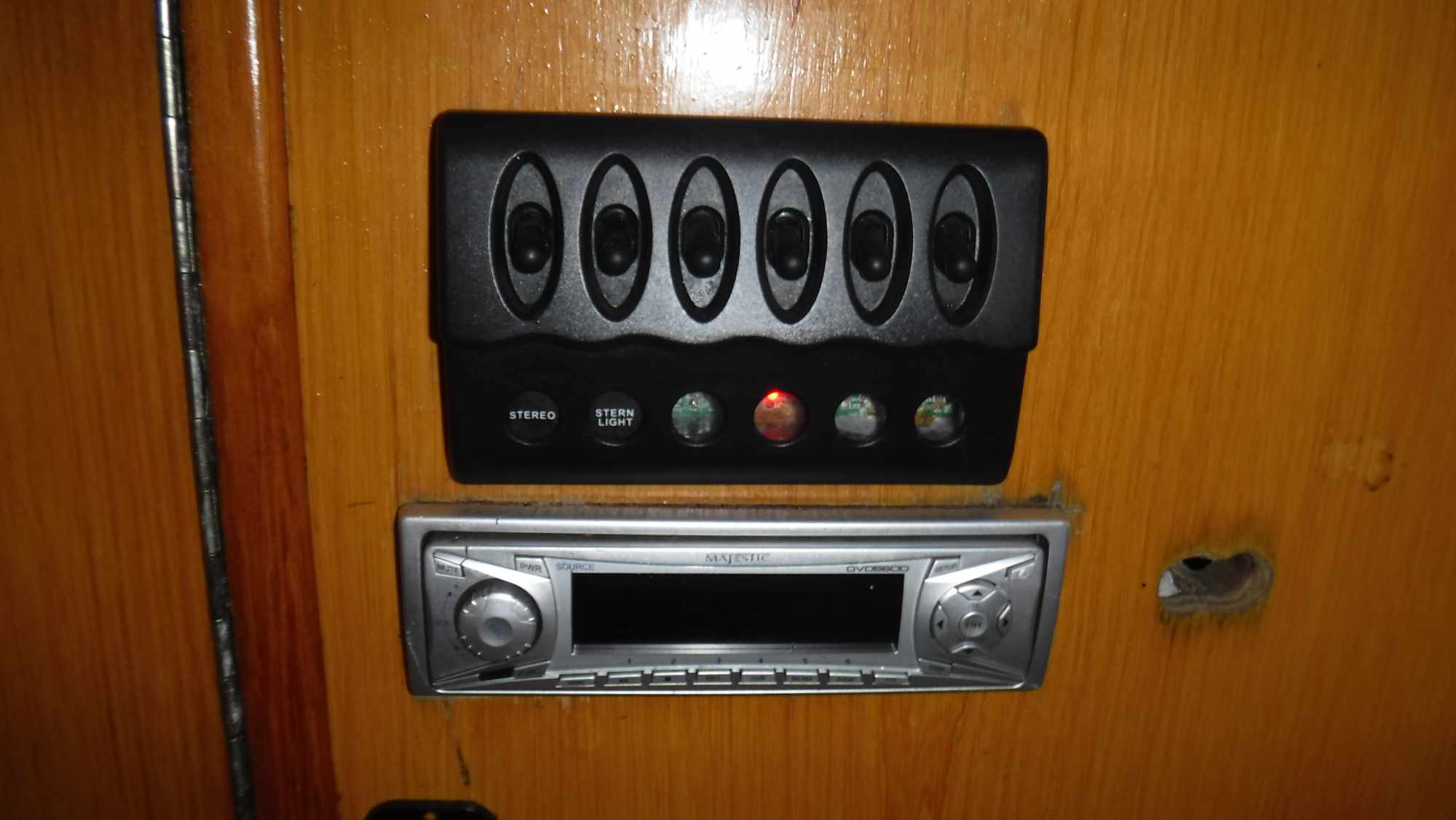

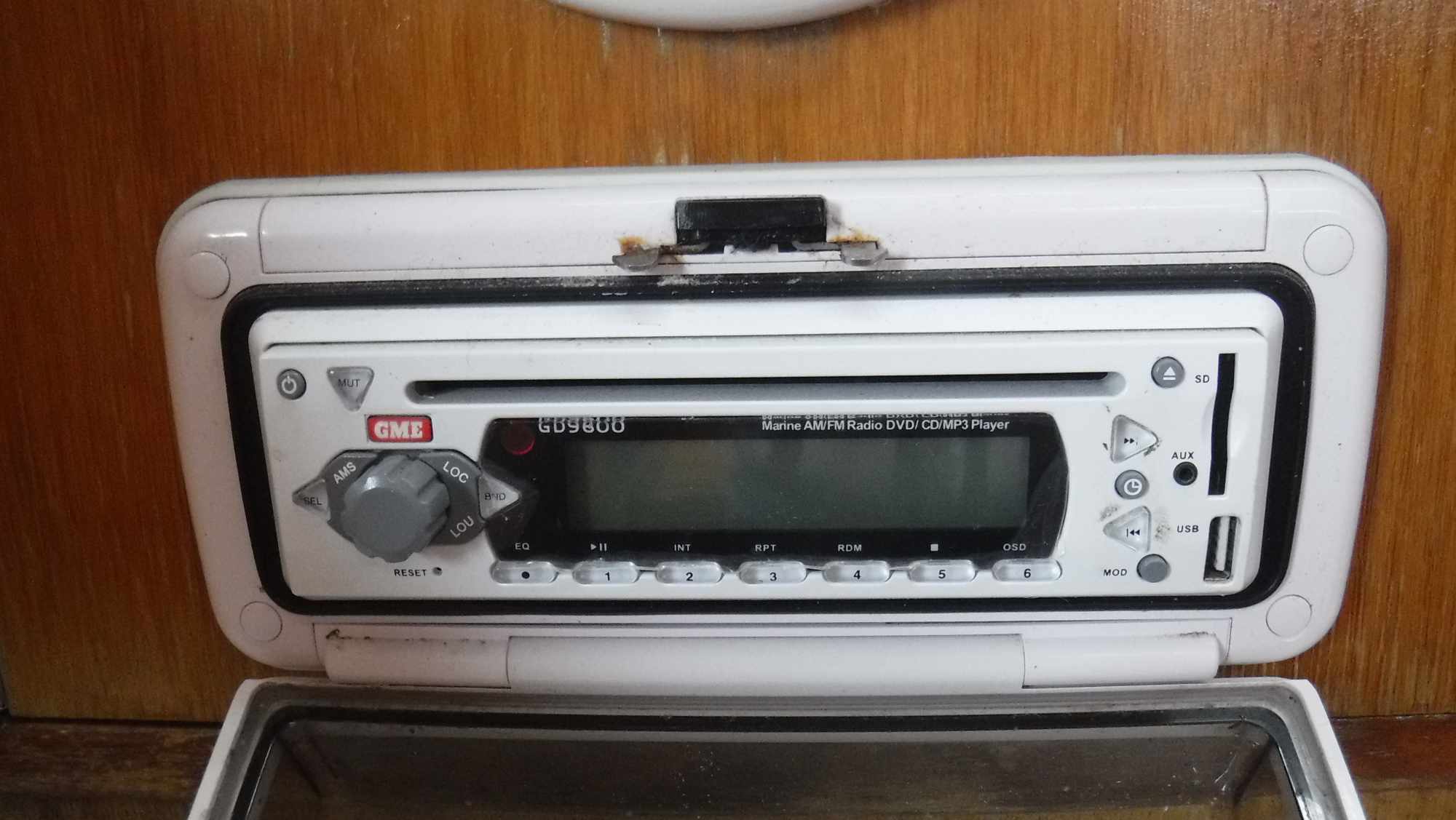

• GMC GD 600 marine AM/FM Radio/DVD/CD/MP3 player connected to 3 x speaker mounted in saloon

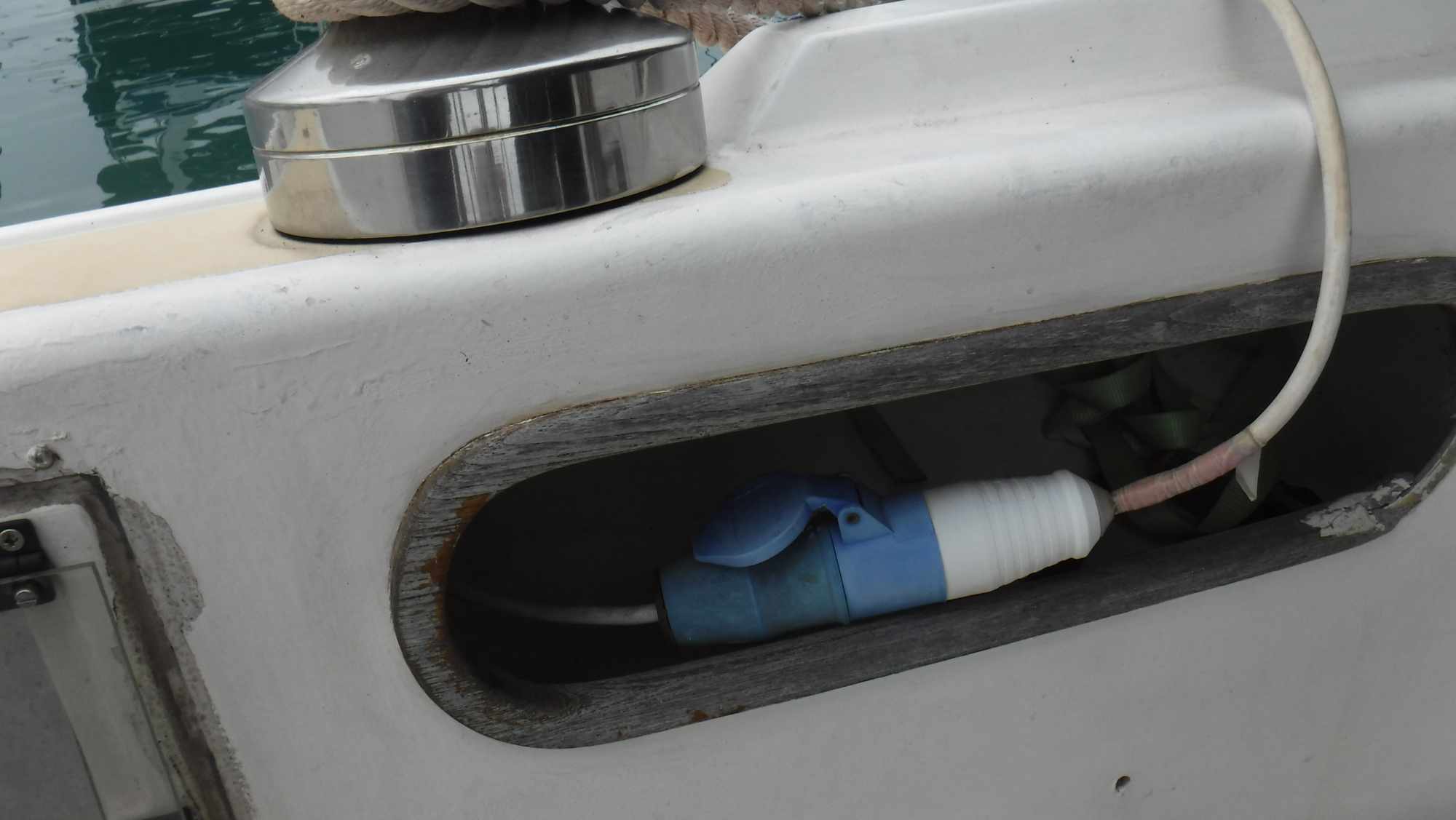

• Shore power connection
• DB electric  board

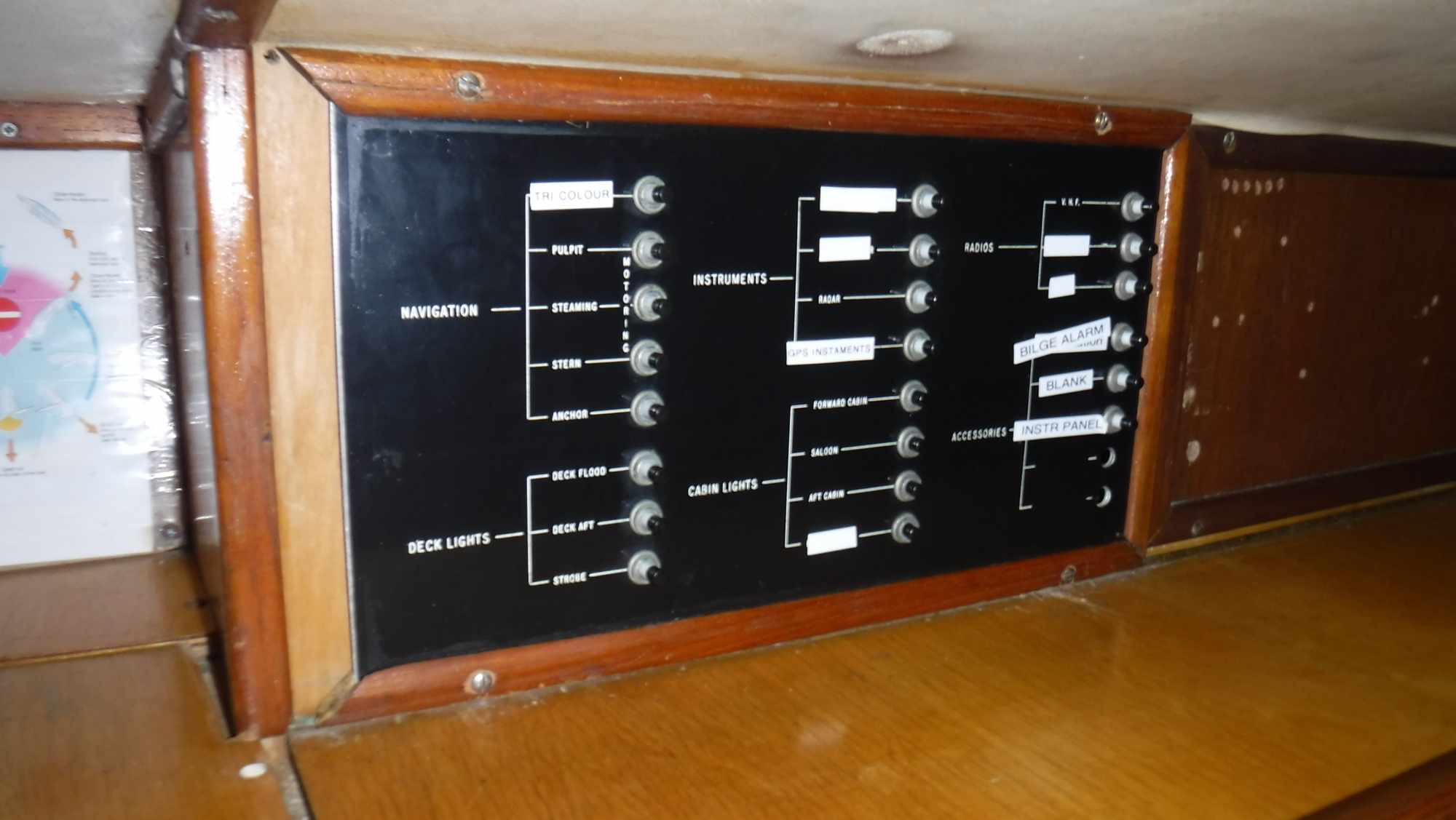

• Electronics and navigation switch board
• Navigation lights – mast fitted

8. Accommodation & Interior

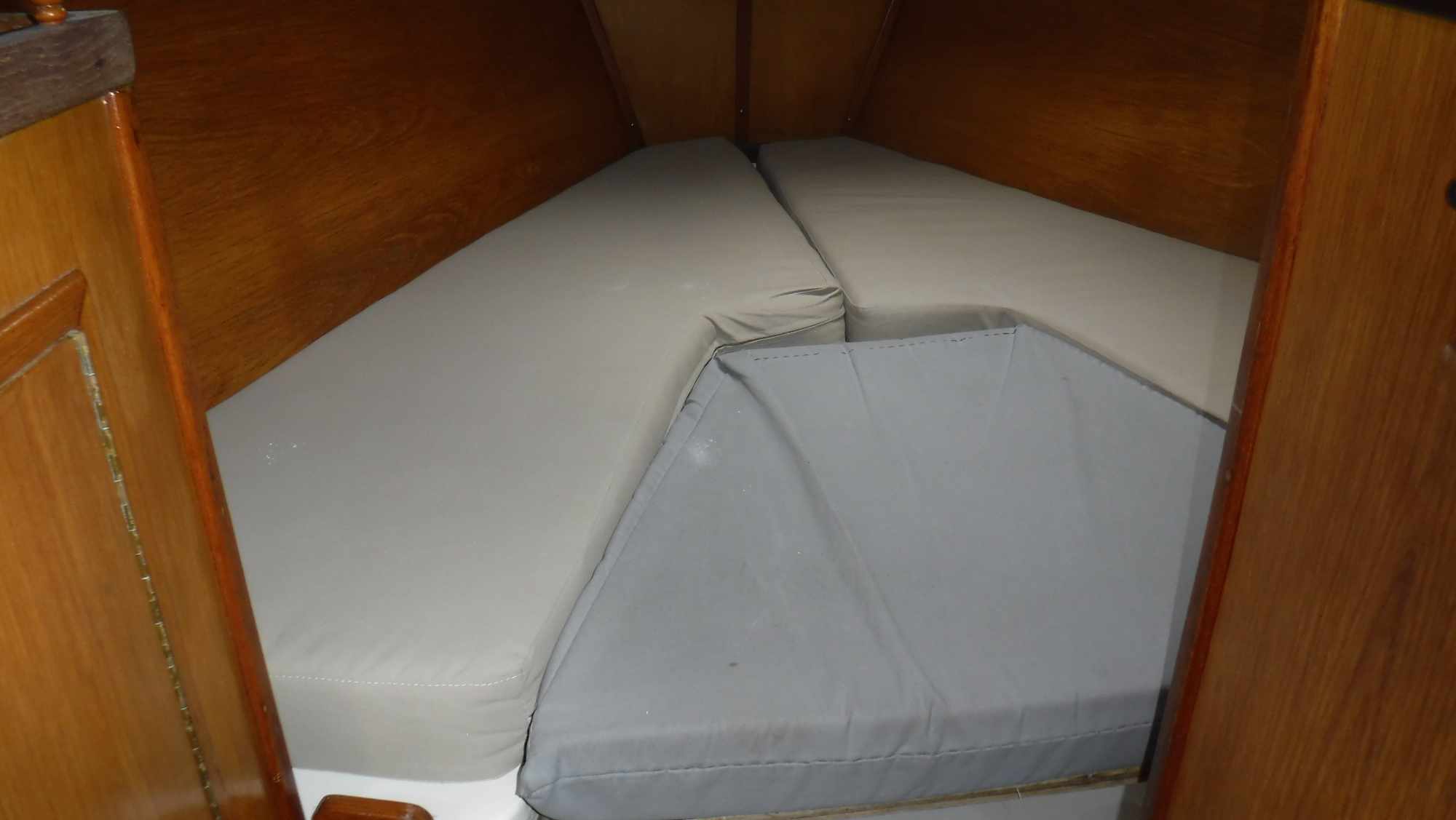

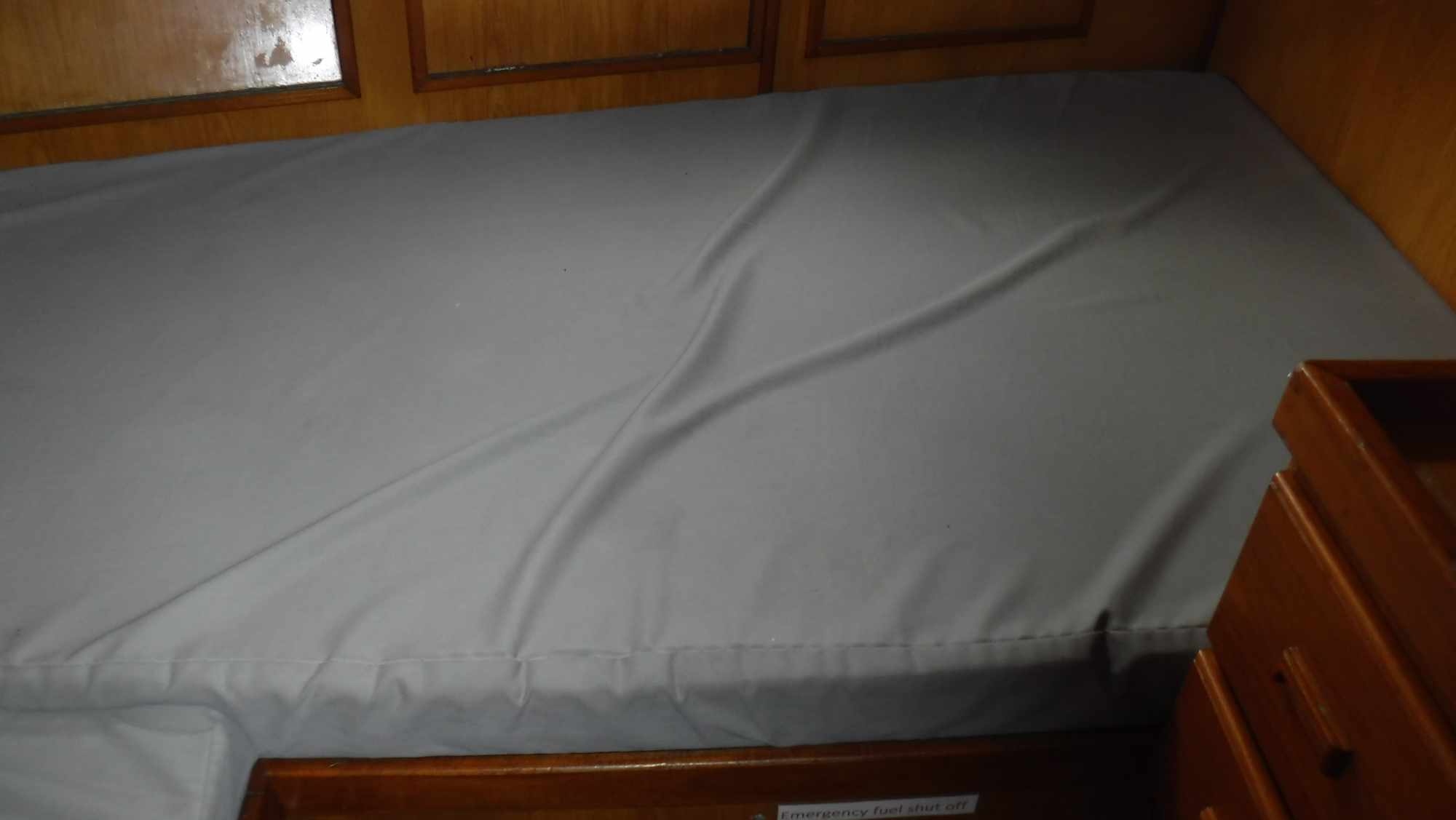

• Double cabin in bow
• Captain’s cabin with direct access to saloon and cockpit aft

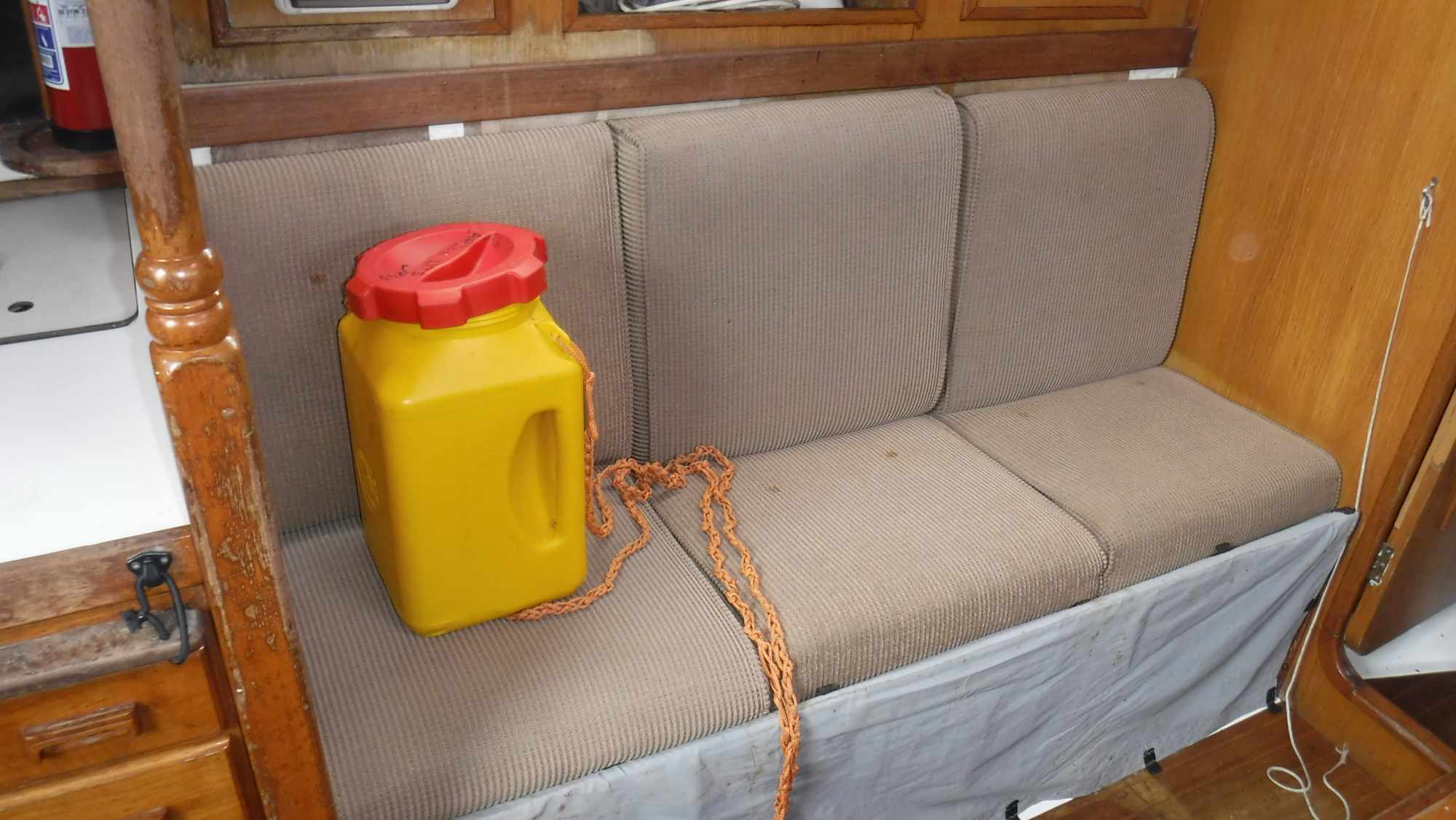

• 2 X Single berths in saloon

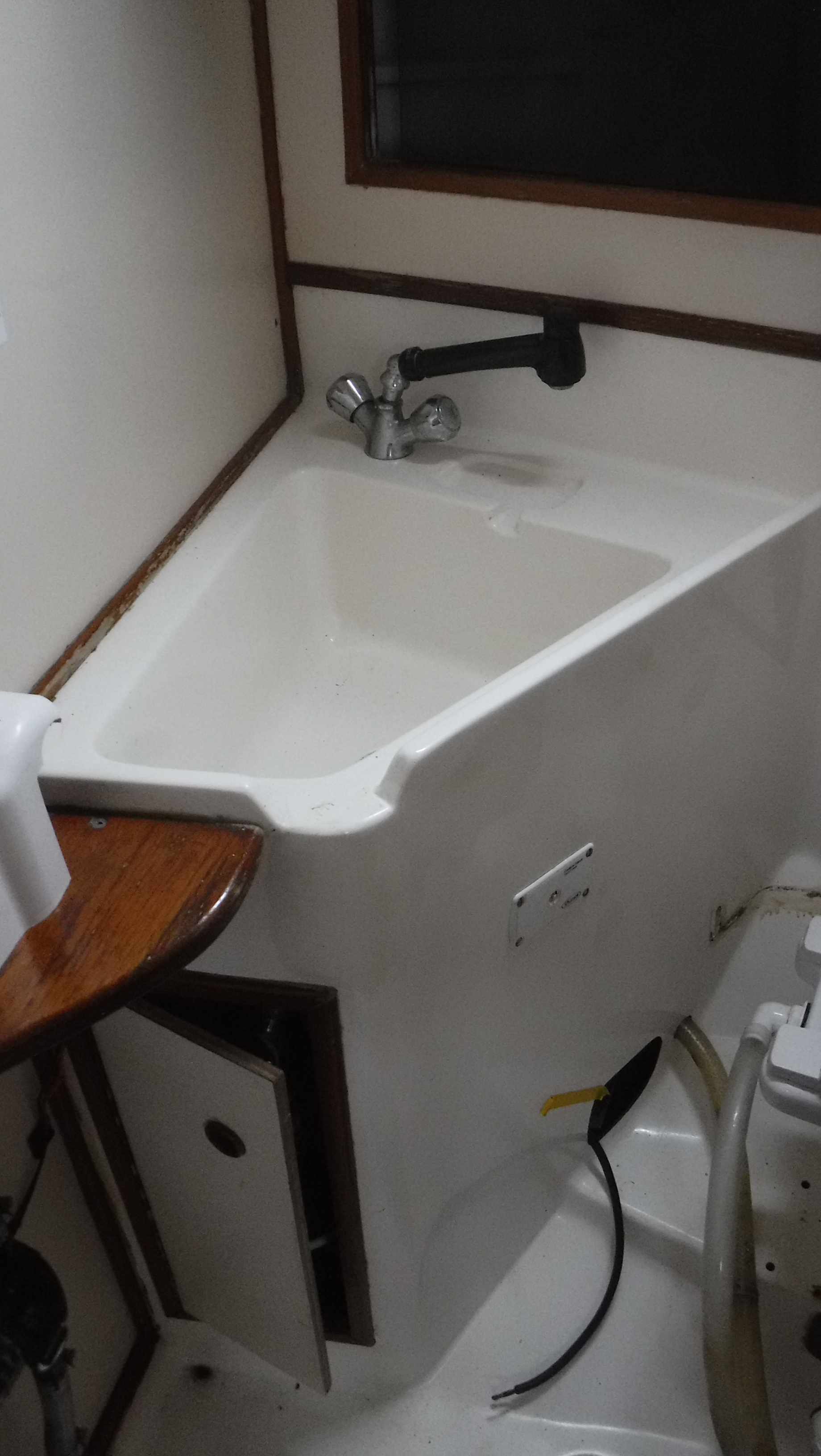

• Heads – with single toilet, wash basin and handheld shower
• Material upholstery

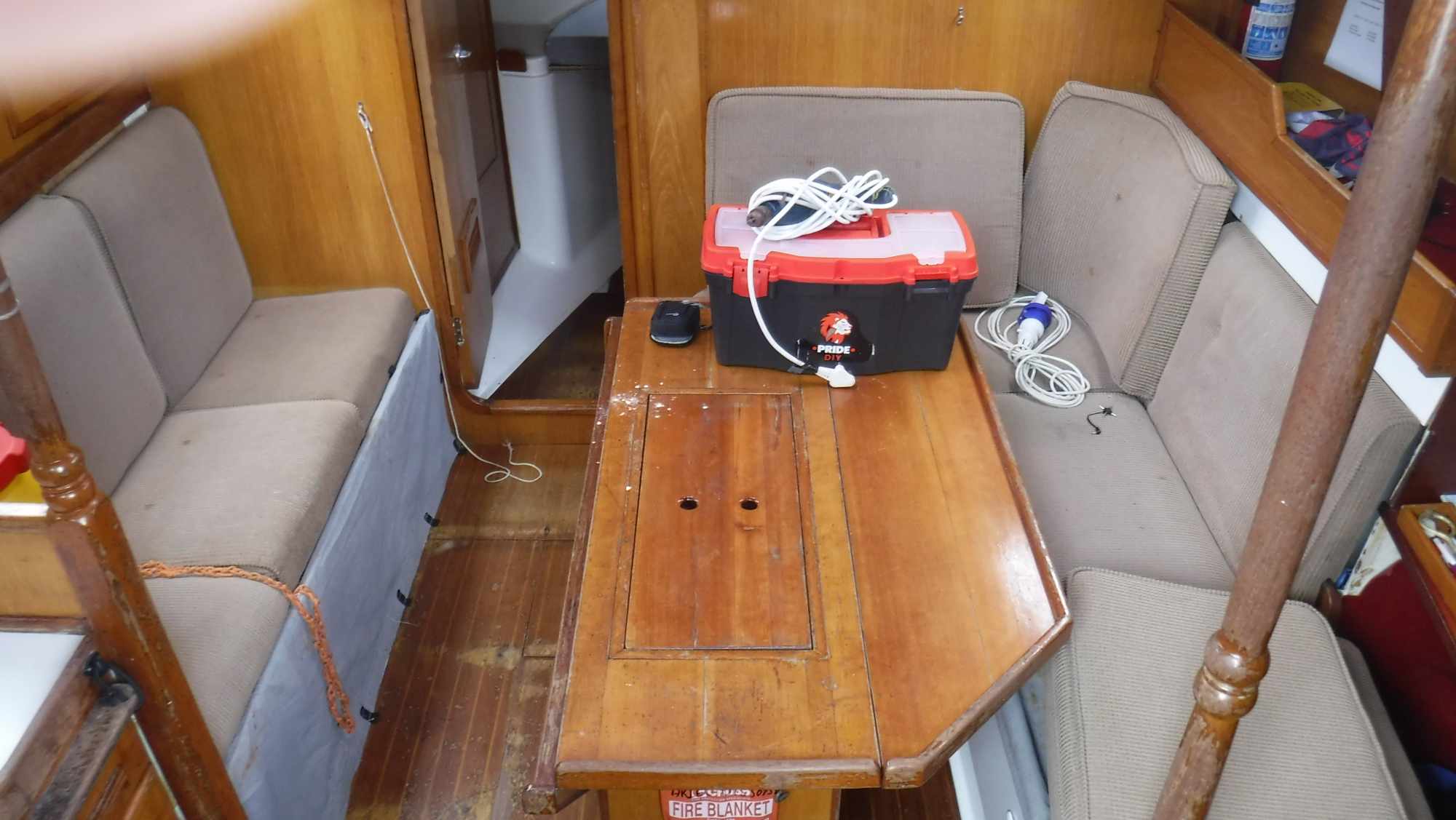

• Timber flooring and oak veneer interior cladding

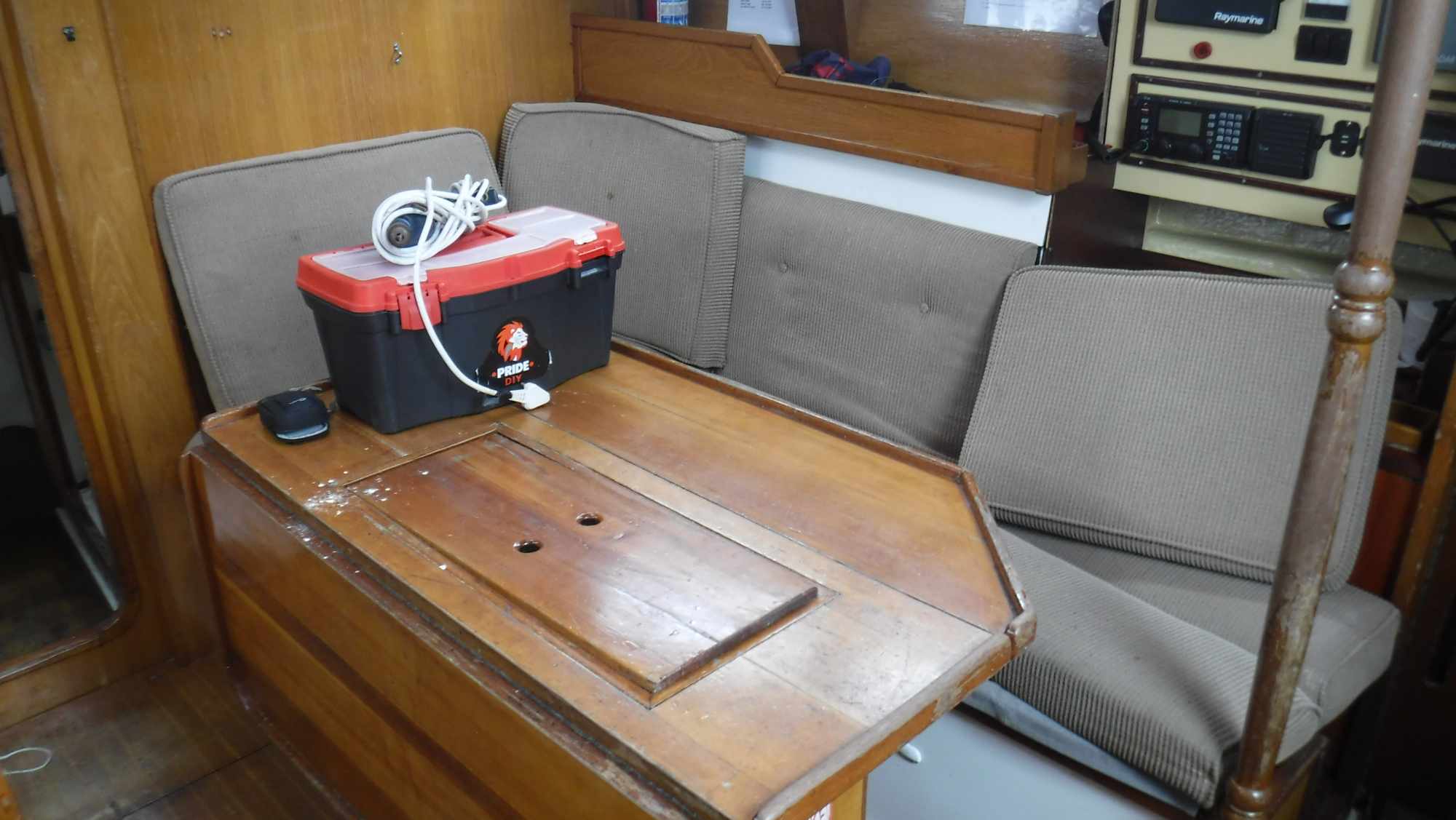

• Oak veneer finish interior cupboards, lockers, navigation station and saloon table with chart compartment

9. Galley

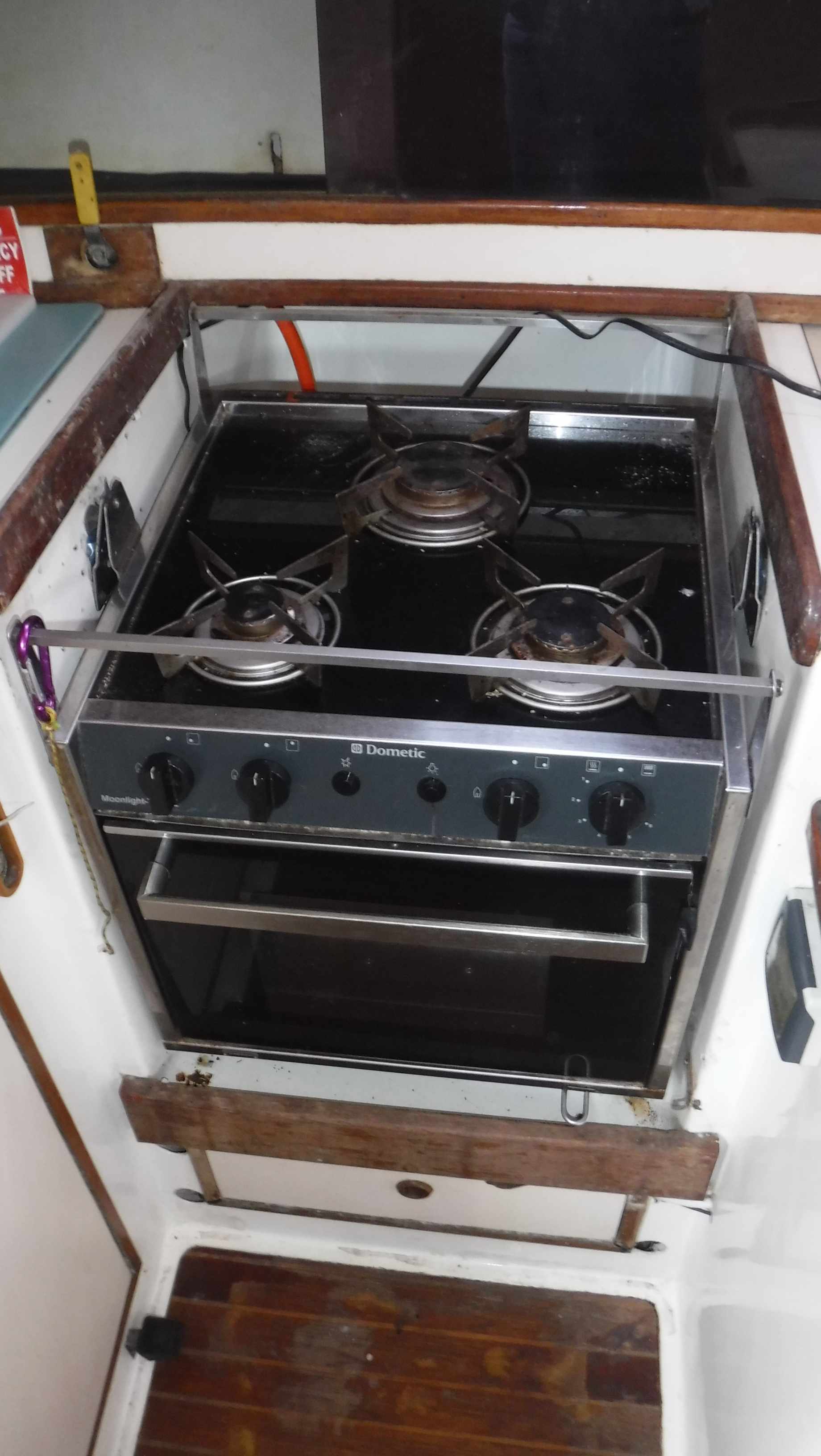

• “Domestic” 3 burner gas stove and oven on gimble pivot

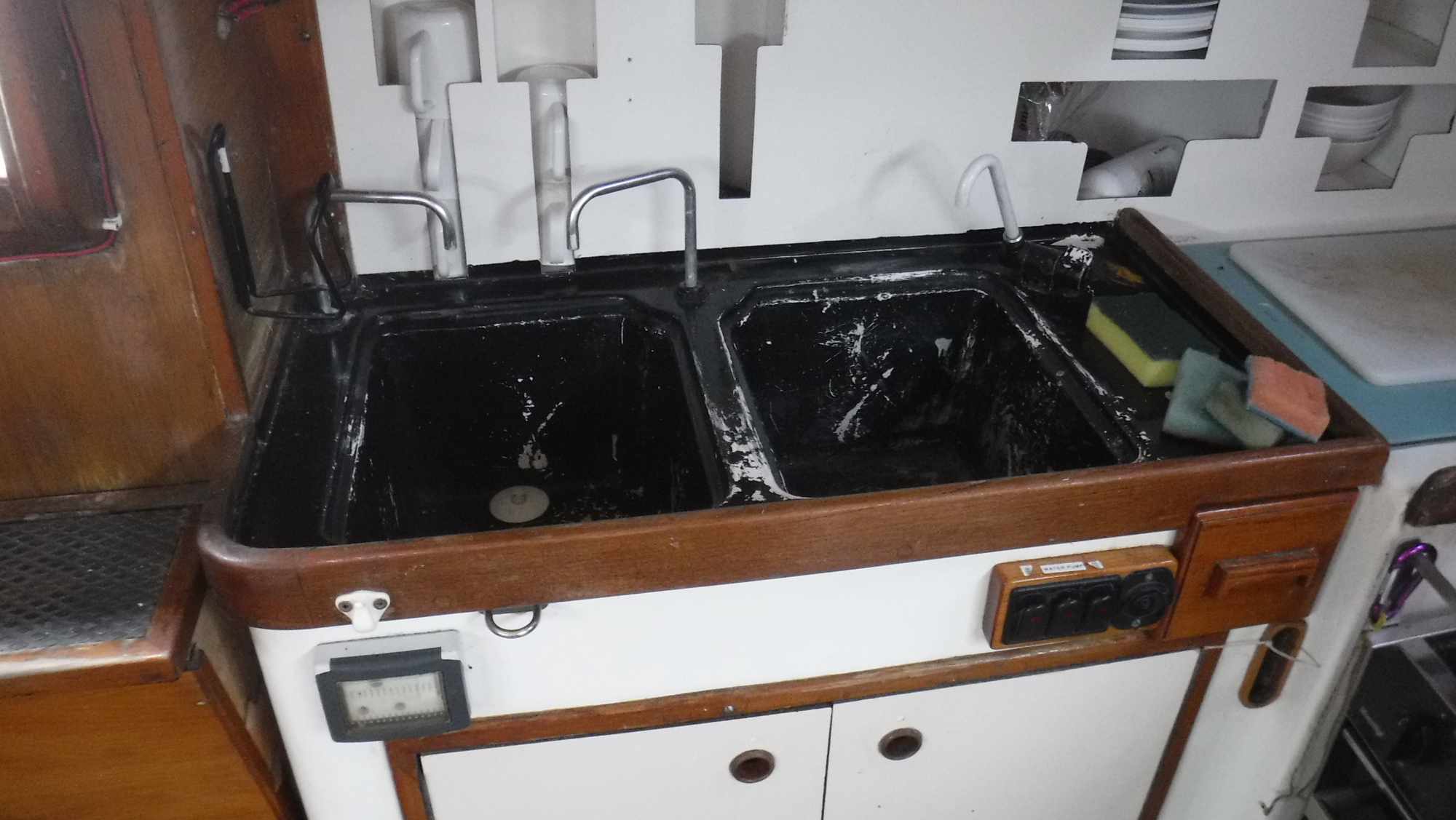

• Plastic double wash-up basin
• Manual pressurised cold freshwater system

10. Plumbing

• ± 350 litre freshwater tank
• Bilge pumps (2 x manual & 1 x electric)

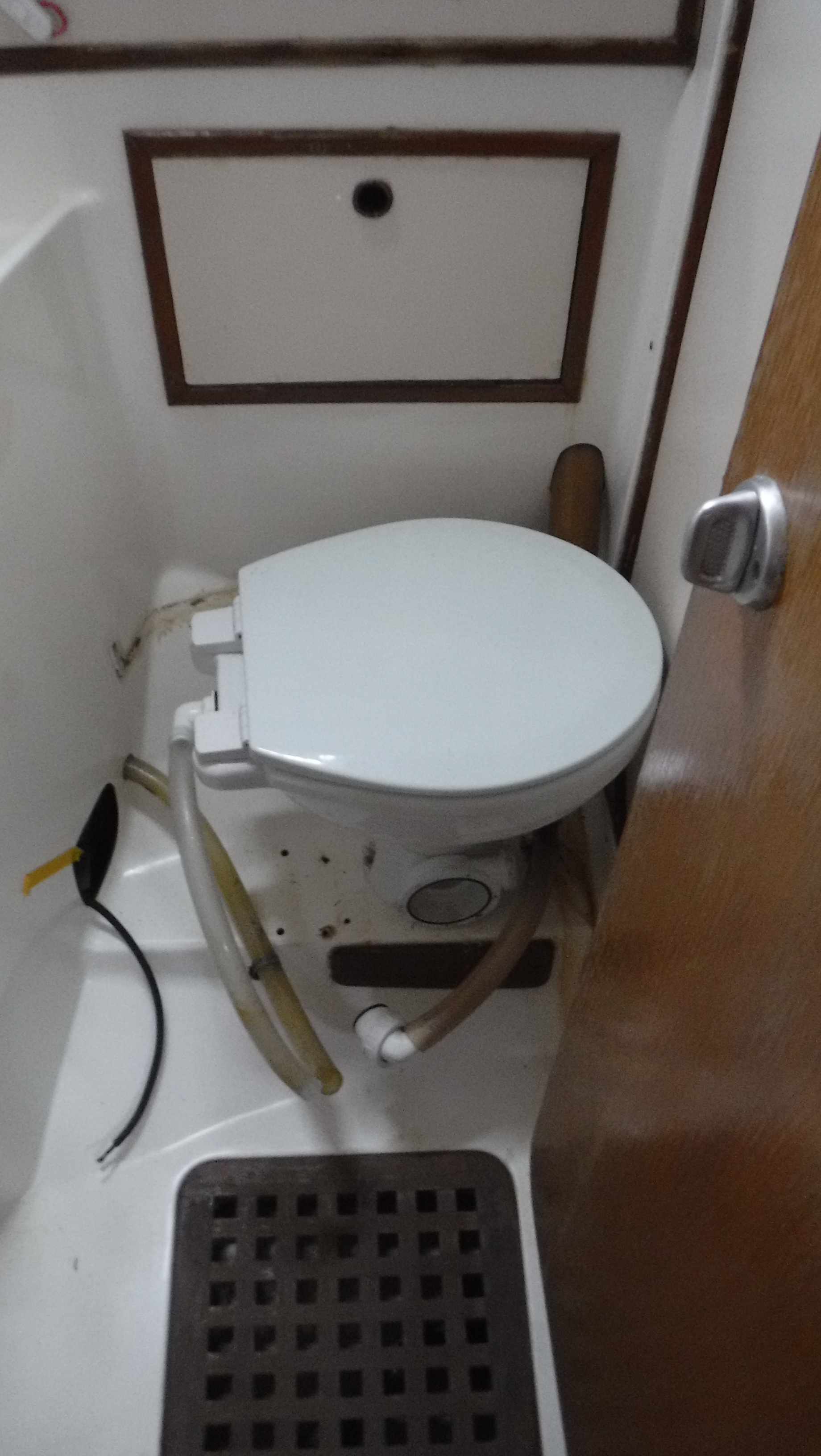

• Manual Toilet

11. Safety Equipment

• Back stay radar reflector

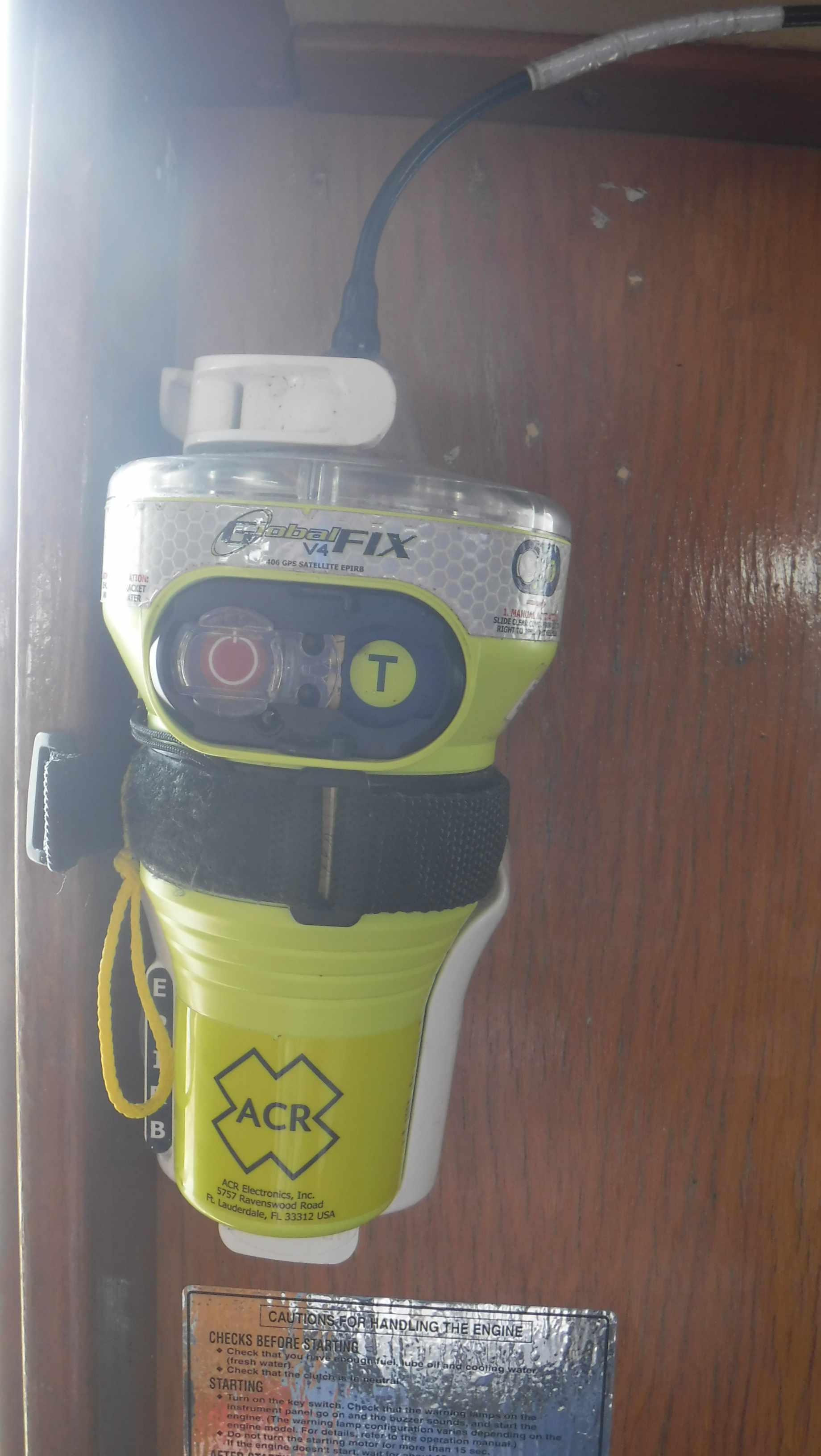

• Handheld global Fix V4 406 GPS satellite epirb

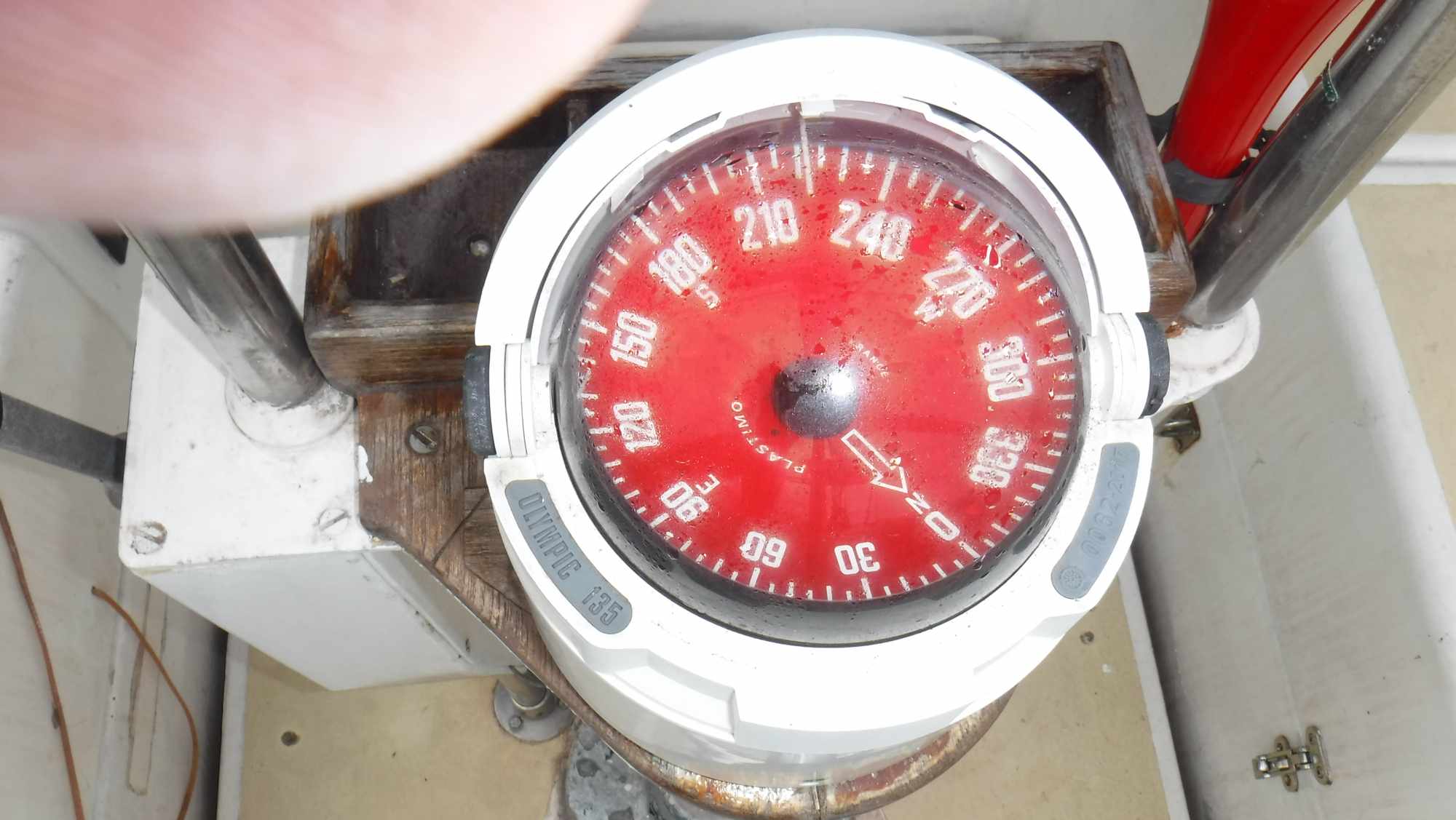

• Olympus steering pedestal mounted compass

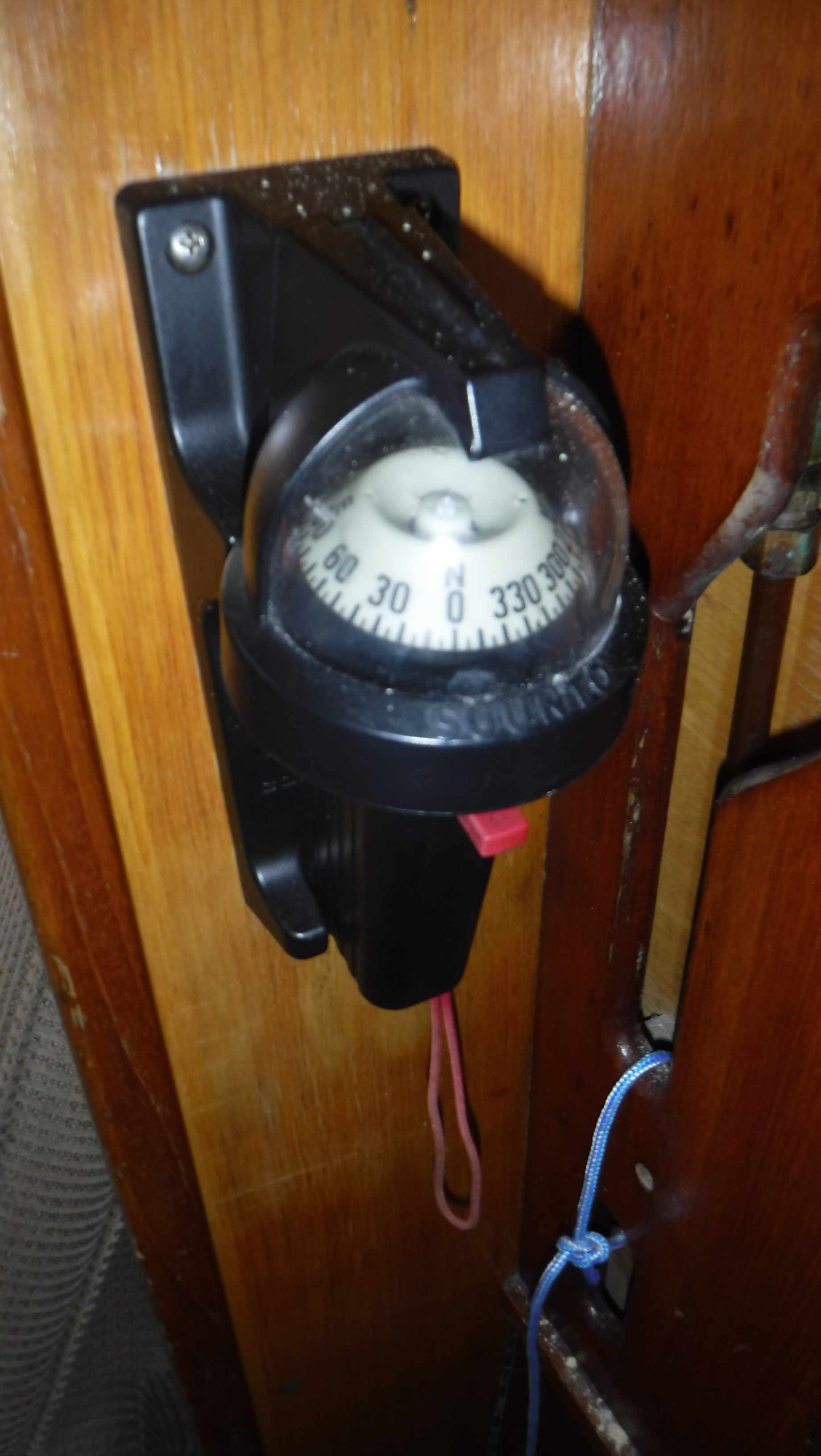

• Handheld marine compass

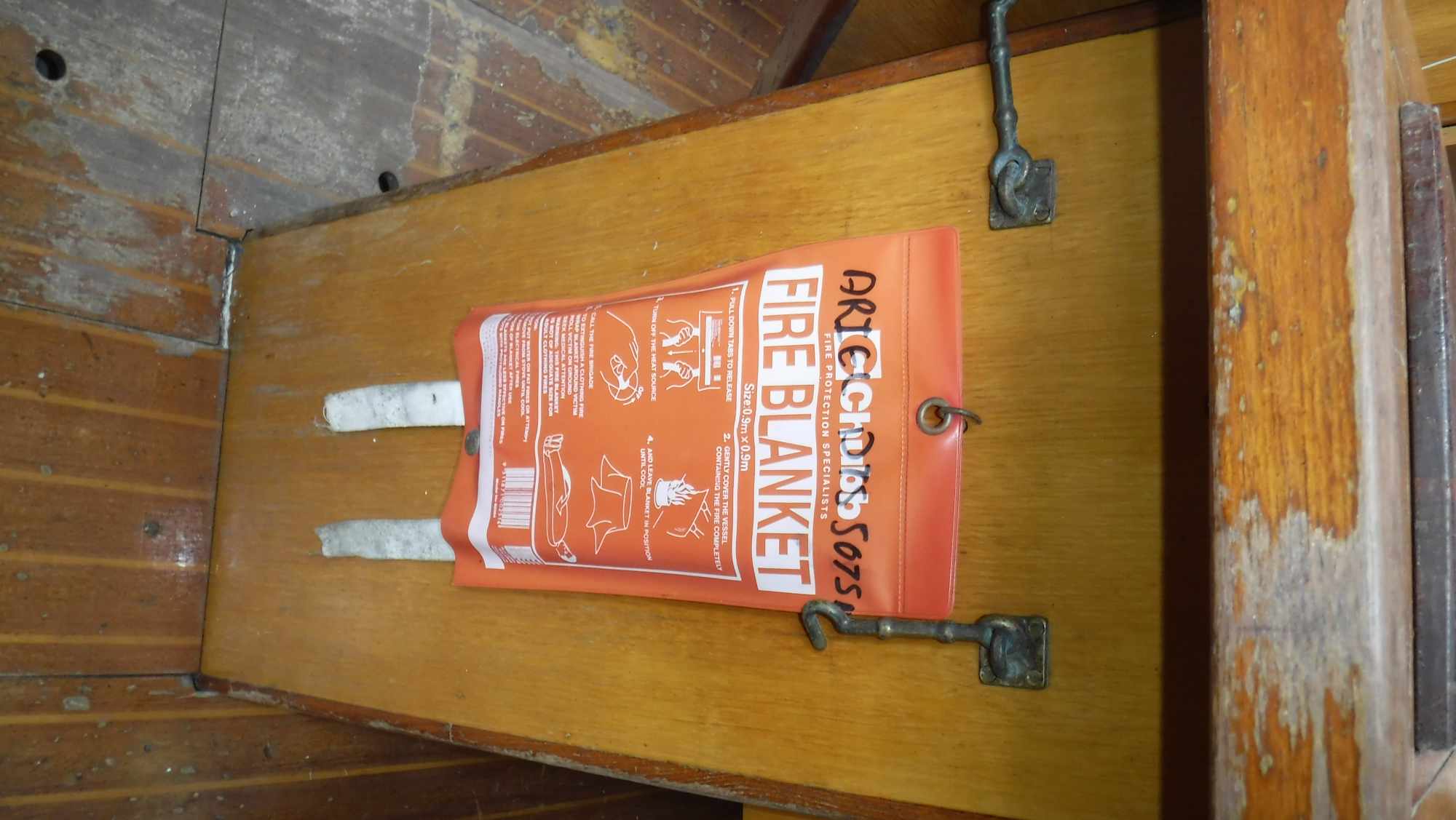

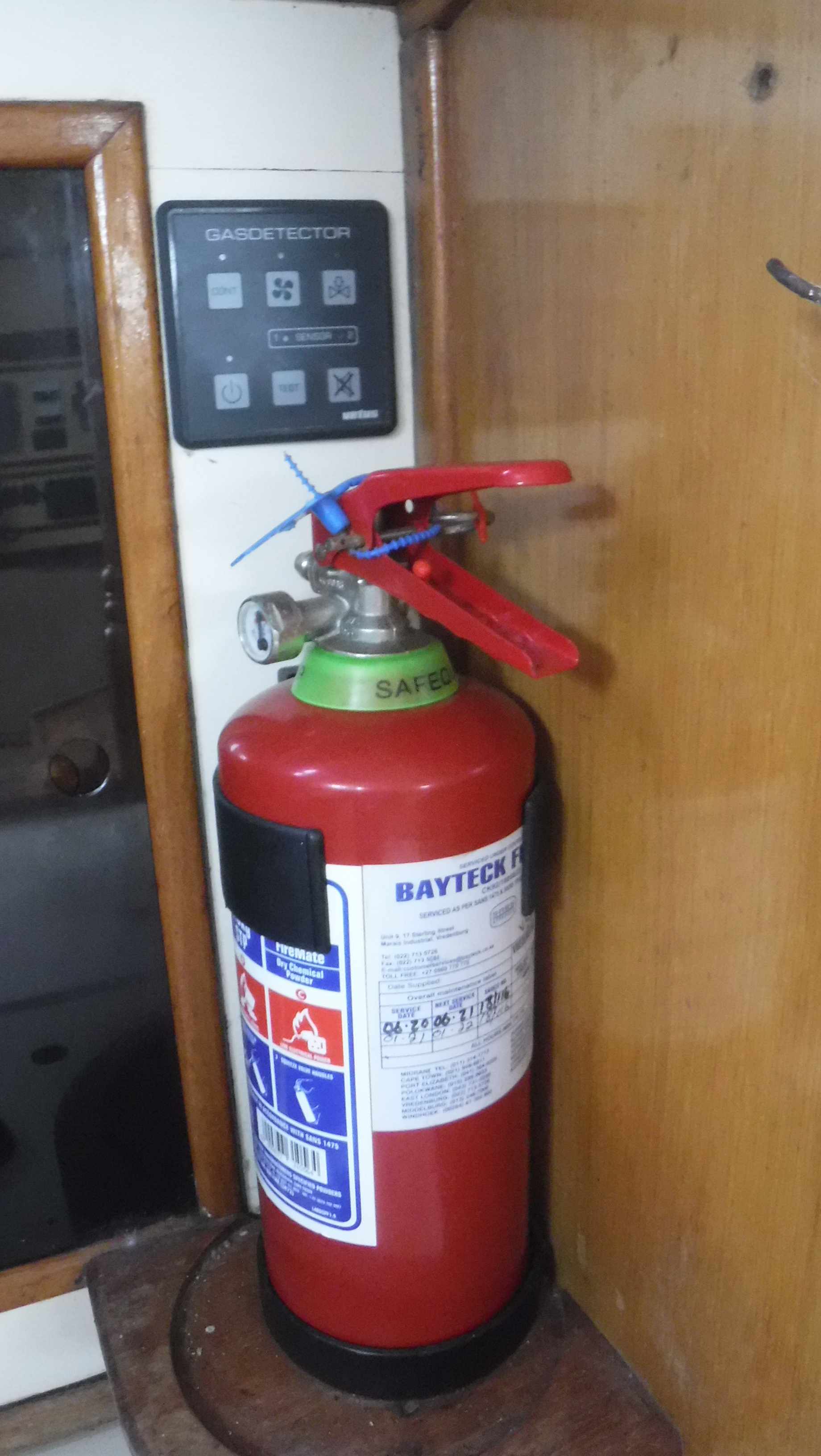

• Fire extinguishers and fire blanket
• Horseshoe life ring (MOB)

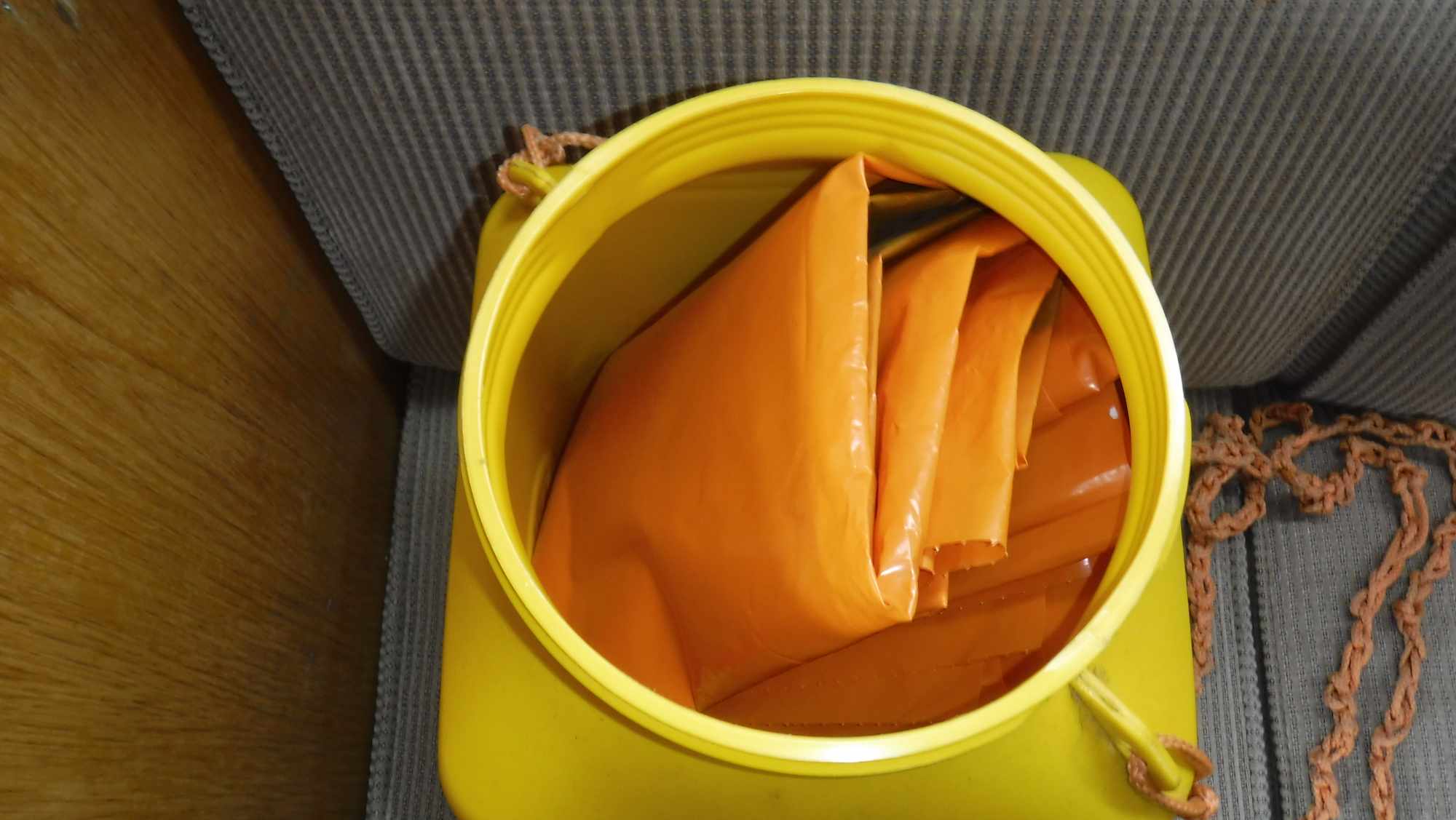

• Capsize bottle with flares and safety equipment (expired)

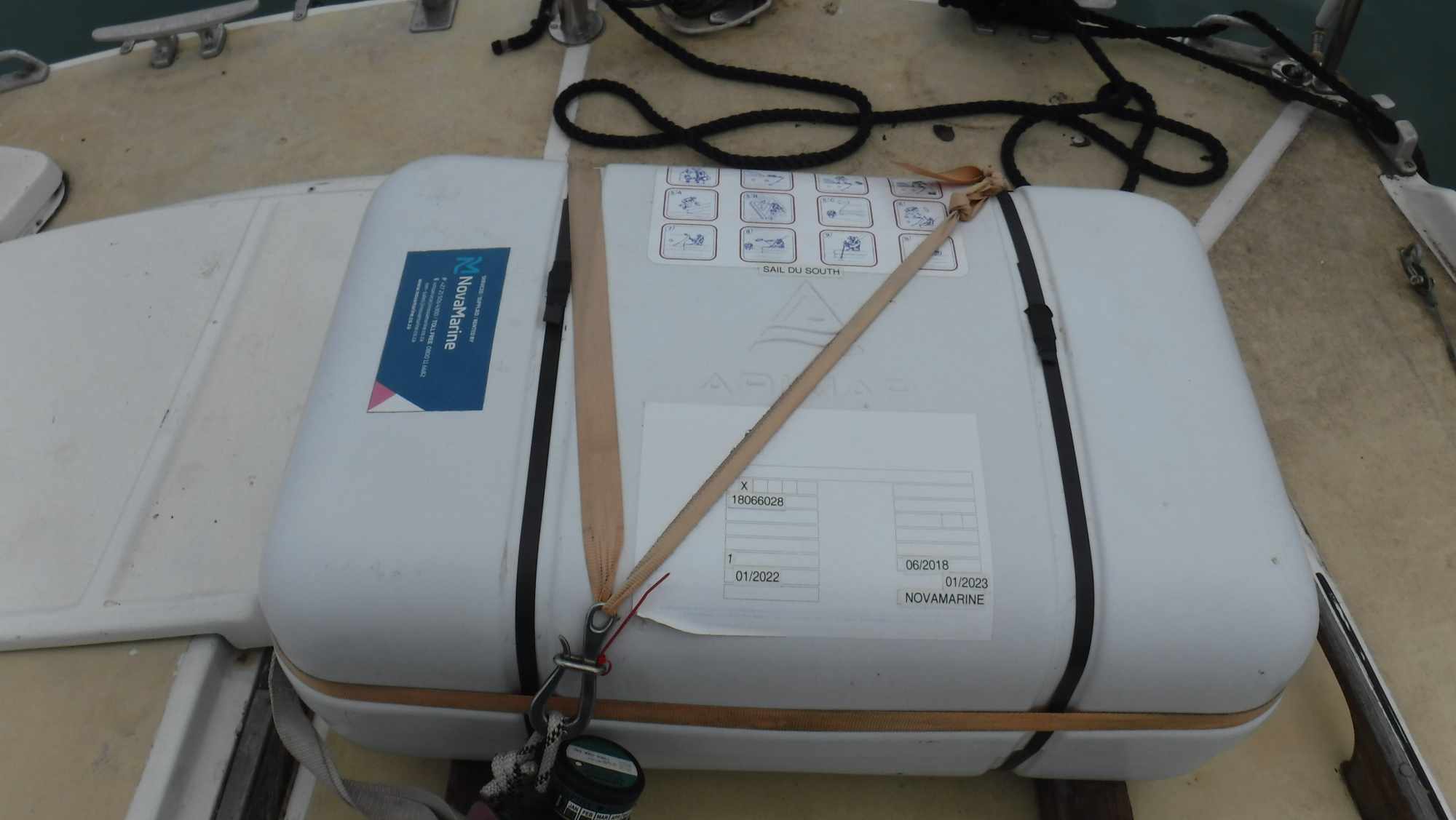

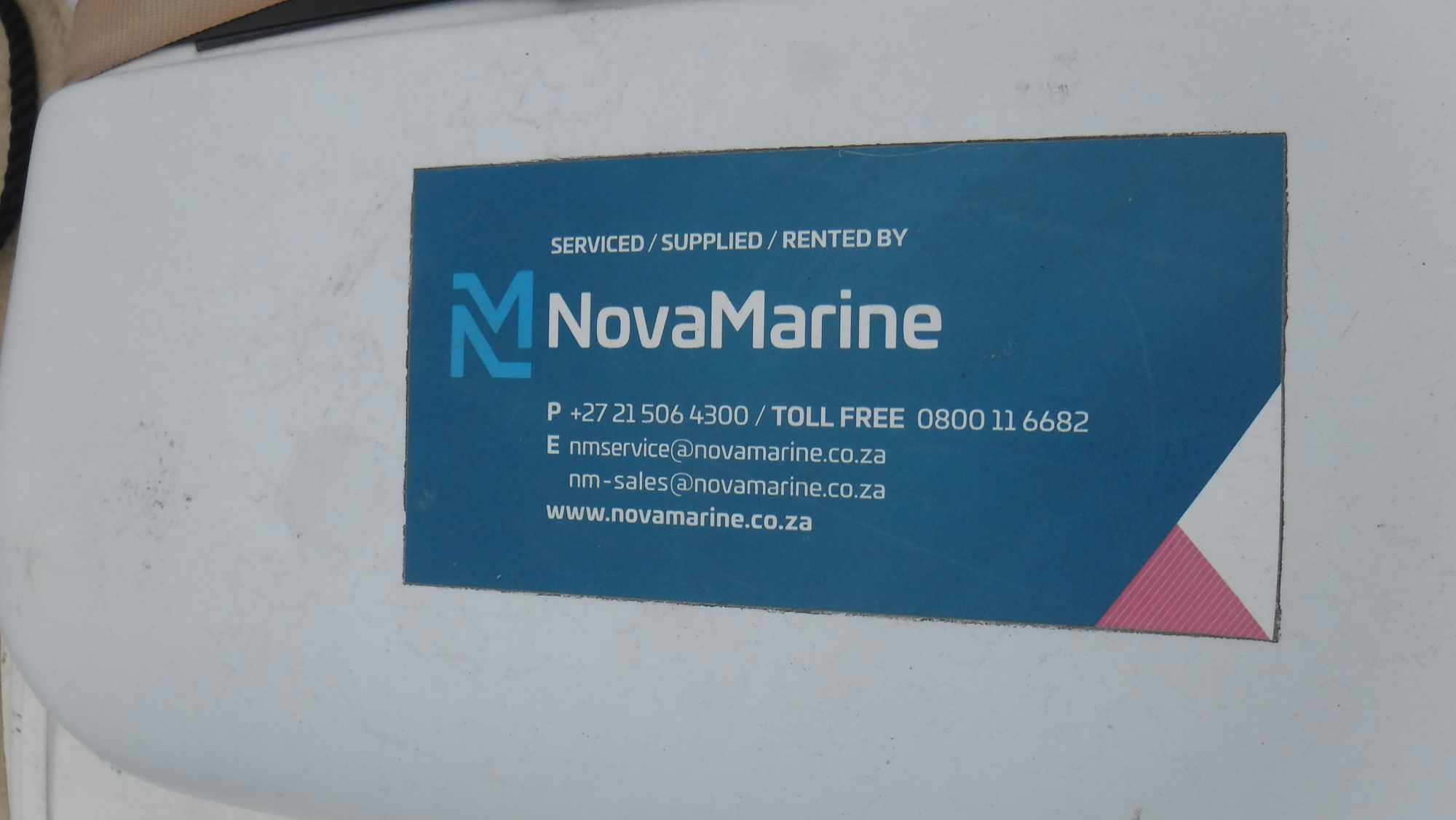

• Afrimar rigid deck fitted inflatable 6-man life raft – supplied and serviced by Nova Marine (COF expired 01/2023)

12. Extras

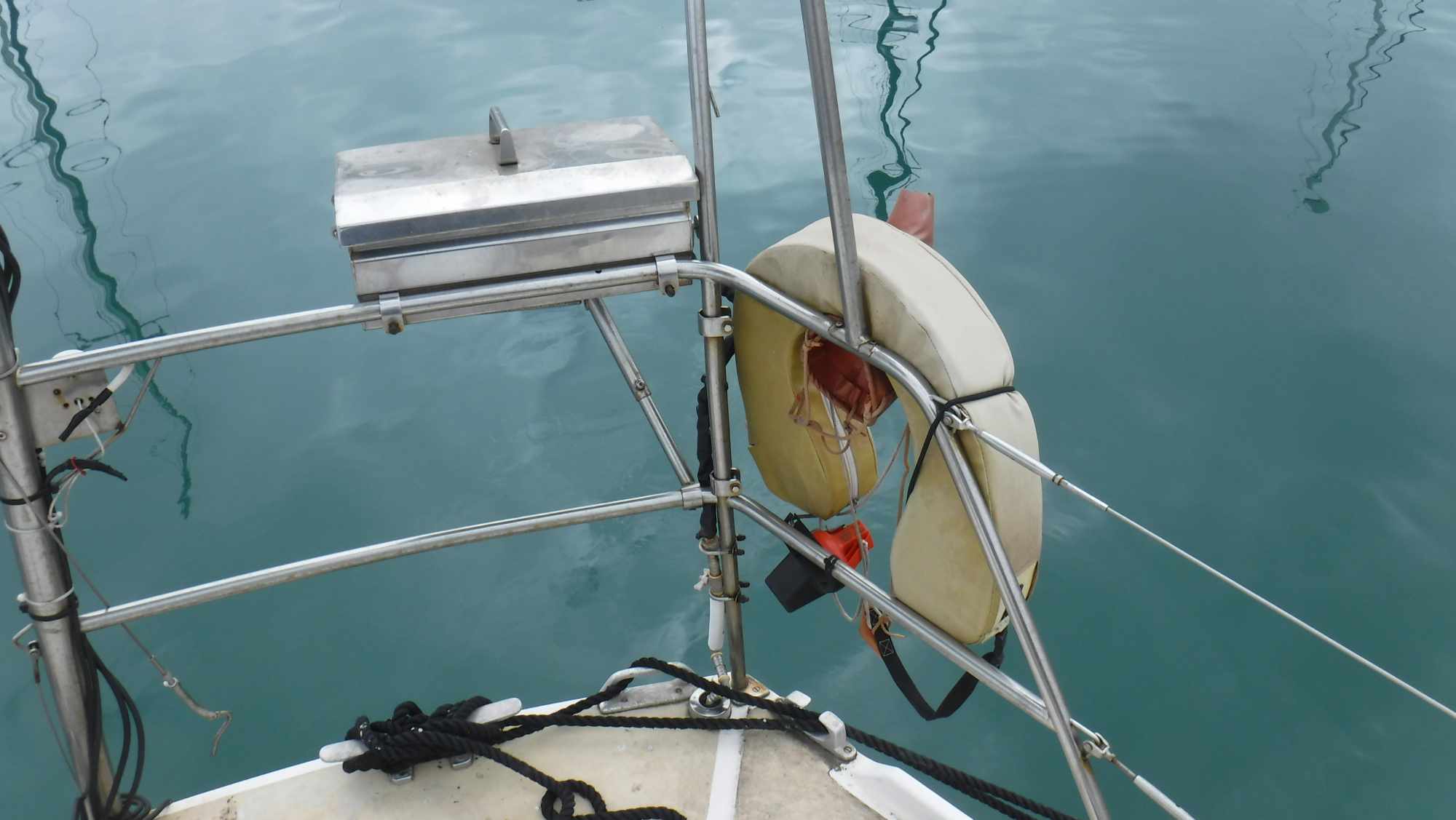

• Stern rail fitted BBQ

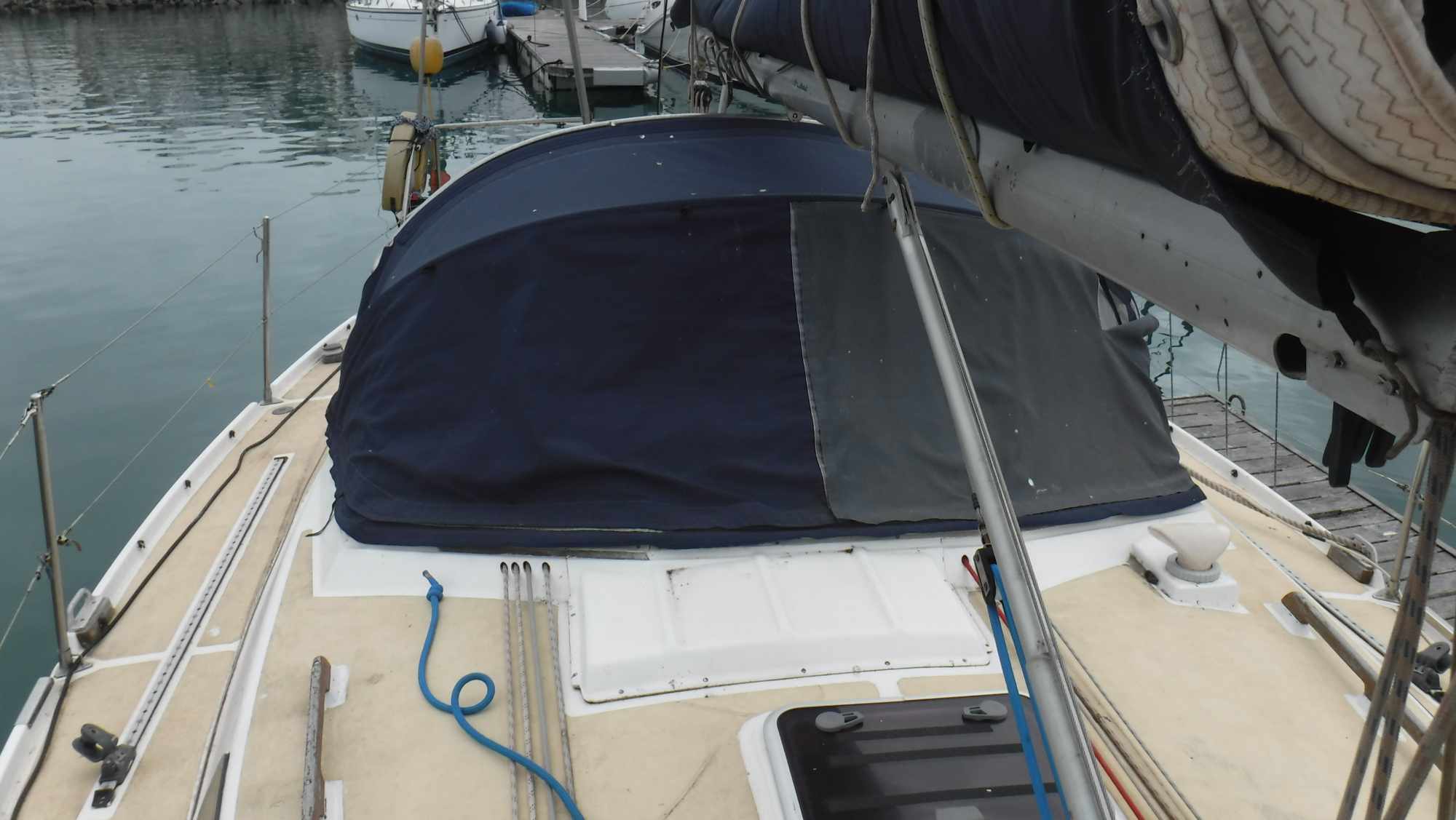

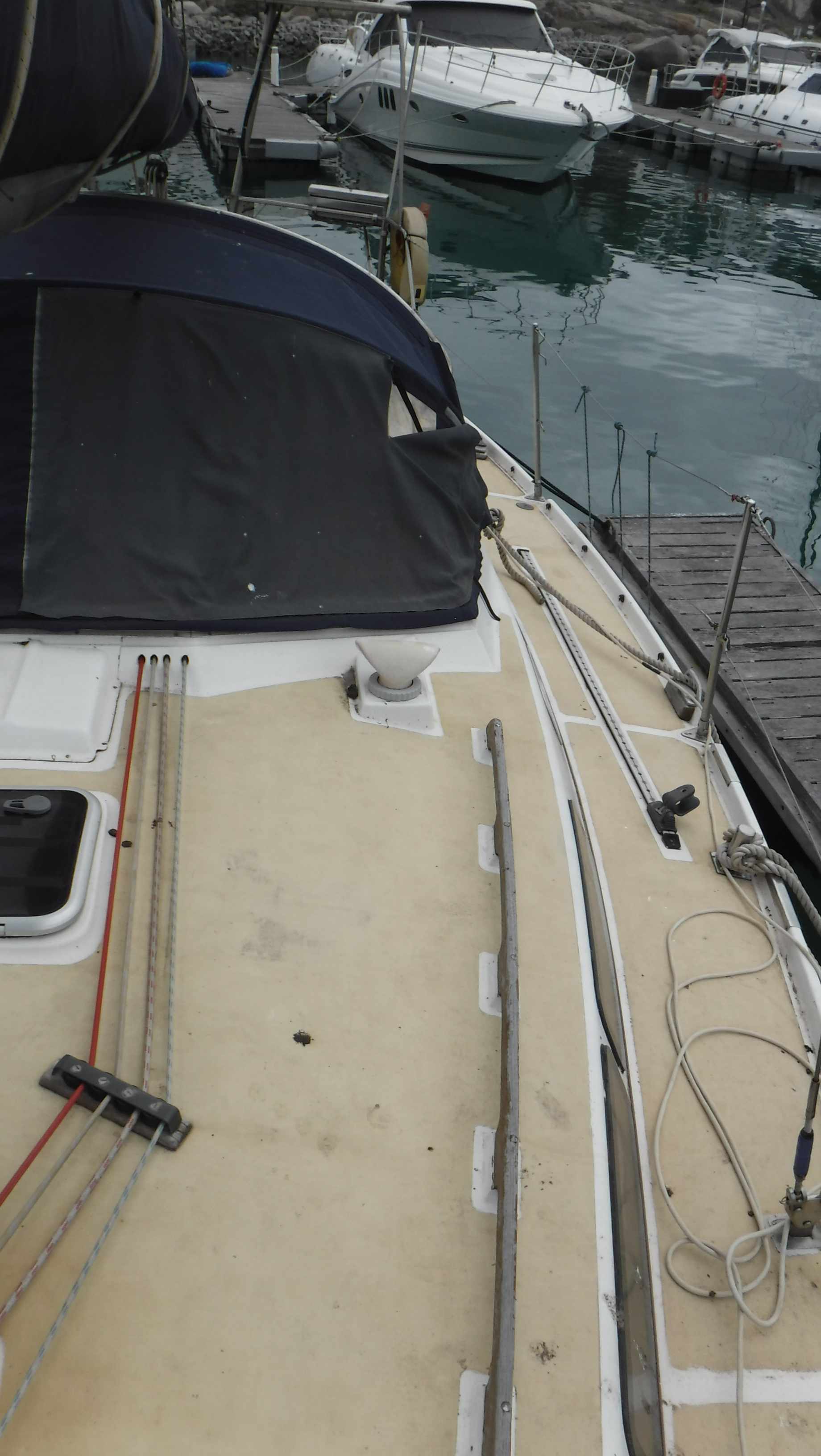

• Spray dodger

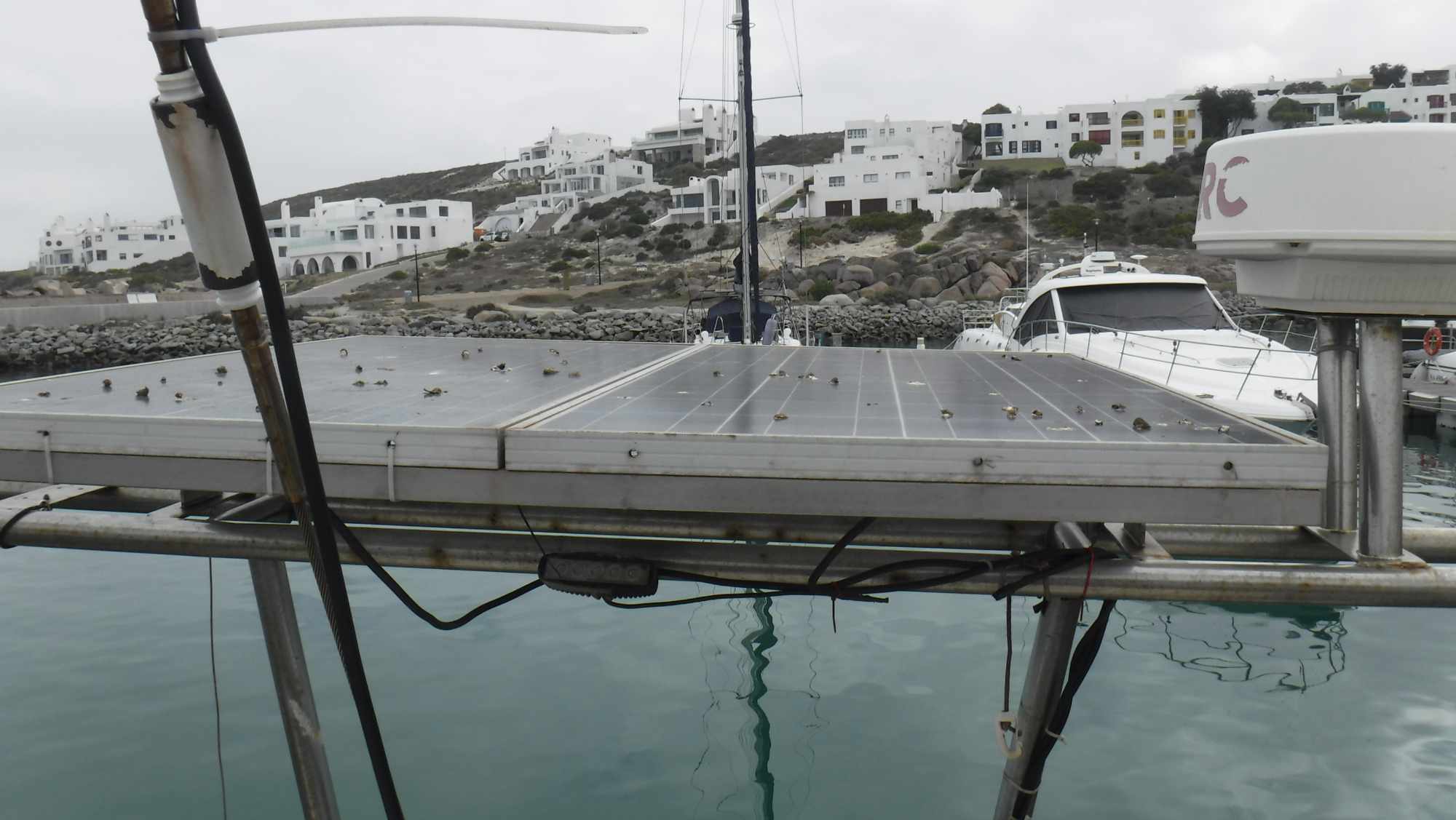

• 2 x Fitted solar panel
• Assortment hand tools and spares
• Fenders and mooring lines
• Gas detector system
